Transparency Problem

Home › Forums › Graphics / Blender › Transparency Problem

Tagged:

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • 2018-04-10 at 4:20 pm #3474
    Pepper KUN
    Customer

    I got some Problem on two object with transparency material. The inside sphere was clip by the transparent part of the outside sphere. But none of this problem happen on the cube byside. Is there any way to get rid of the clipping? :scratch:

    Attachments:
    You must be logged in to view attached files.

    Noob on blender and any other things.

    2018-04-11 at 7:45 am #3484
    Pepper KUN
    Customer

    Also wondering when will the bloom effect feature release? :)

    Noob on blender and any other things.

    2018-04-11 at 8:15 am #3491
    Mikhail Luzyanin
    Staff
    Pepper KUN wrote:

    But none of this problem happen on the cube byside. Is there any way to get rid of the clipping?

    Set Alpha Transperency in the material settings for both materials.

    Pepper KUN wrote:

    Also wondering when will the bloom effect feature release?

    We have it in our TODO list but we can exactly say when, we have a lot of features to add before that more important.

    Co-founder and lead graphics specialist at Soft8Soft.

    2018-04-12 at 6:44 am #3507
    Pepper KUN
    Customer

    I have already tick checkbox of Transparency.You can see it on the image I uploaded. My problem is the sphere inside was blocked by the outside sphere part, although the material of the outside one is transparency.

    Noob on blender and any other things.

    2018-04-12 at 7:31 am #3511
    Mikhail Luzyanin
    Staff
    Pepper KUN wrote:

    I have already tick checkbox of Transparency.You can see it on the image I uploaded. My problem is the sphere inside was blocked by the outside sphere part, although the material of the outside one is transparency.

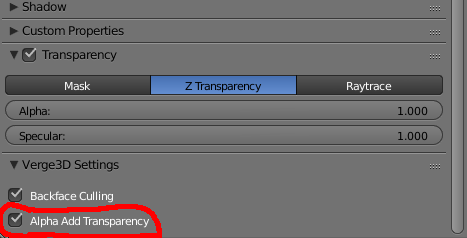

    Sorry, I mean Alpha Add Transparency checkbox not only Transperency.

    Attachments:
    You must be logged in to view attached files.

    Co-founder and lead graphics specialist at Soft8Soft.

    2018-04-12 at 7:49 am #3514
    Pepper KUN
    Customer

    Thank you, it works. :good:

    Noob on blender and any other things.
