    Hi,
    Is there any documentation available on how the make the parametric round corners in Blender. I tried a few ways, but I can’t get it to work.
    Is someone willing to explain a bit ?

    Corners

    #29494
    kubuz
    Customer

    I found it. I put some thoughts here for later reference, or if someone stumble on the same issue.
    The following work can be done.

    – Create a copy of your model, and place it on the same position.
    – Apply for each, a bevel in edit mode. Its not possible to use the modifier, cause you cant apply it, if other shape keys exist.
    – Set the 2 bevels equal segments, cause the 2 models need to have the same number of vertices.
    – One should have the minimum radius, the other one a bigger radius. (take some thing easy to handle in the puzzles.
    -Last thing that is left. Select the shape with the biggest radius first, then the smaller one and select join as shape. (see screenshot)
    Join as shape
    Result:
    Result

    Update.
    I was messing around with the shape keys in combination with modifiers.
    And the same technique works also. The only thing you need to do is, removing the modifiers before applying the keys.
    Made with modifiers
    :yahoo:
    cheers!!

    #29503
    GLiFTeK
    Customer

    Hi
    Wow
    Great stuff man.

    This is what I’m taking about, complications pondered then solutions explained in detail for others to come across in search of the same.

    Real nice with the visuals.

    Have you ever messed with “latheing” a profile shape?

    I’ve gone through the gamut with them, found the best way for using shape-keys with keyframes, but am aiming to go the svg-buffer-geometry three.js class route.
    :good:

    #29507

    Yes, that’s the proper way to do it. :good:

    Co-founder and lead graphics specialist at Soft8Soft.

    #39491
    vincentveira
    Participant

    Hi

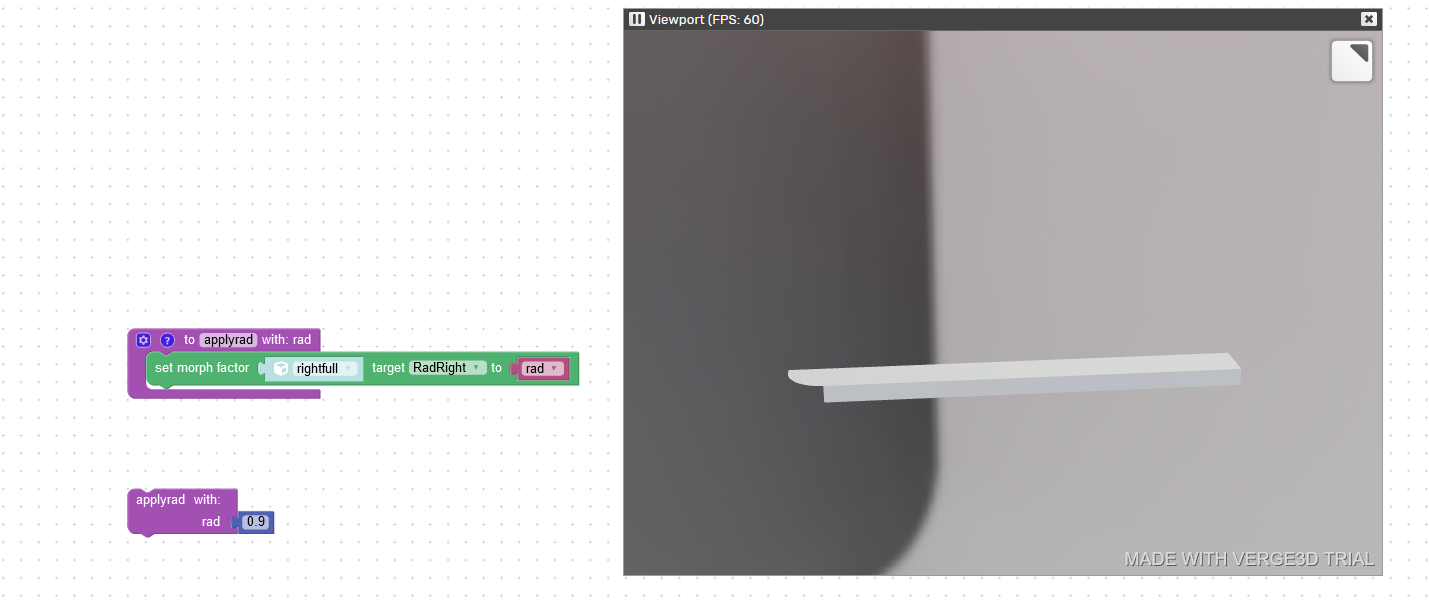

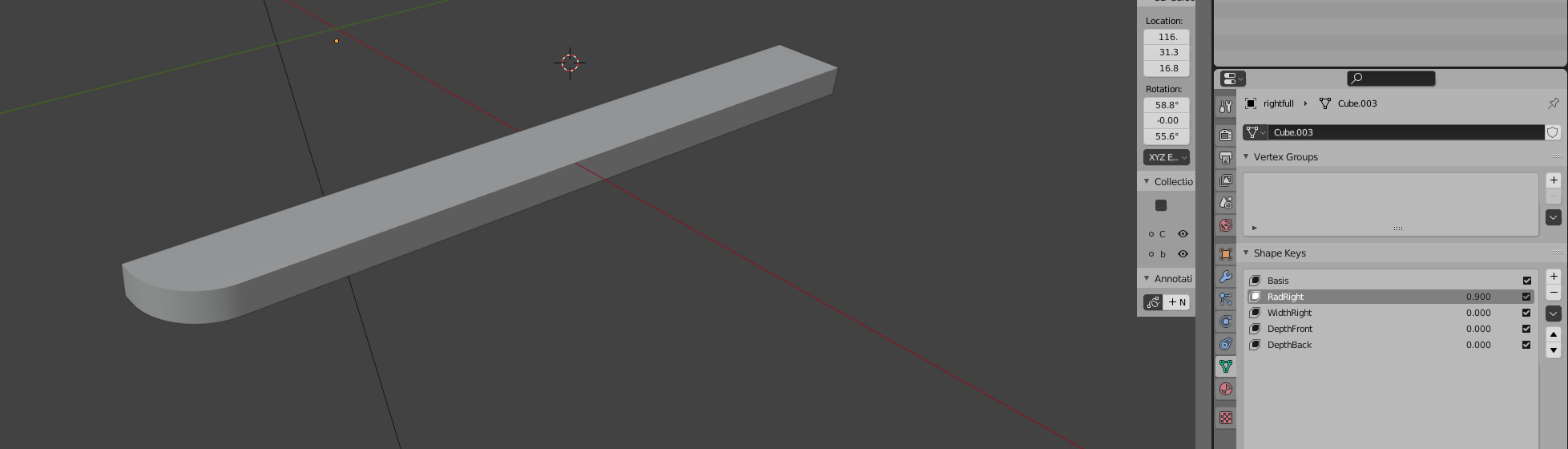

    I`ve worked out the shapekeys for bevel, and it seems to work ok in blender, but in verge it renders hollow, anyone any thoughts?

    Attachments:
    You must be logged in to view attached files.
    #39494

    Try to check normals, may be they are inverted.

    Co-founder and lead graphics specialist at Soft8Soft.

    #39566
    vincentveira
    Participant

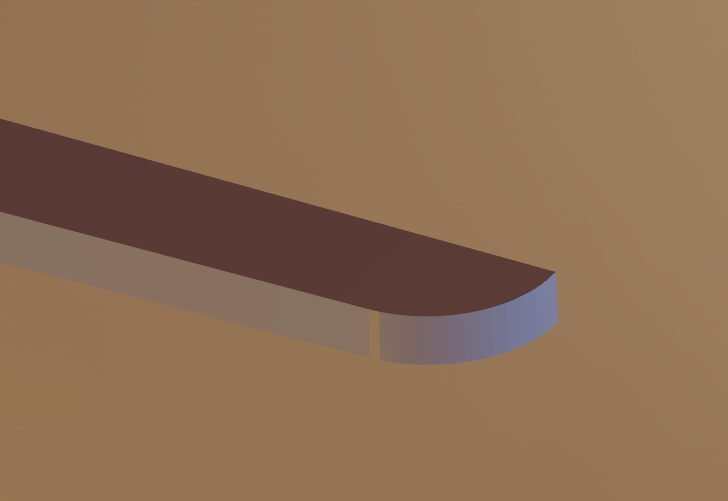

    gave it a try, it`s better but not perfect

    Attachments:
    You must be logged in to view attached files.
    #39578

    Try to force inversion for this face or upload an example blend file here I will look at it.

    Co-founder and lead graphics specialist at Soft8Soft.

    #39586
    vincentveira
    Participant

    I`ve uploaded the file, tx in advance

    Attachments:
    You must be logged in to view attached files.
    #39636

    Unfortunally, for now you cant start to make corners from such small size of faces, you will need to multiply base position of the corner may be ij 50 or 100 times.

    Co-founder and lead graphics specialist at Soft8Soft.

    #39653
    vincentveira
    Participant

    ok tx for checking this, will search for another approach

    #66709
    rightflip
    Participant

    thanks so much I’ve been bangin my head into this problem for hours now
