Rigged mesh breaks apart

This topic has 4 replies, 2 voices, and was last updated 3 years, 11 months ago by gregor1.

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
2020-12-15 at 4:13 pm #36531

gregor1
Customer

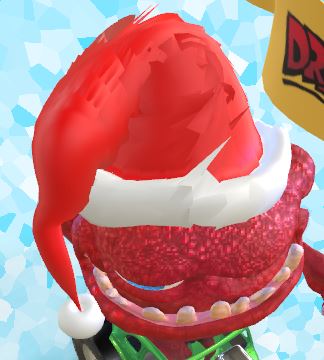

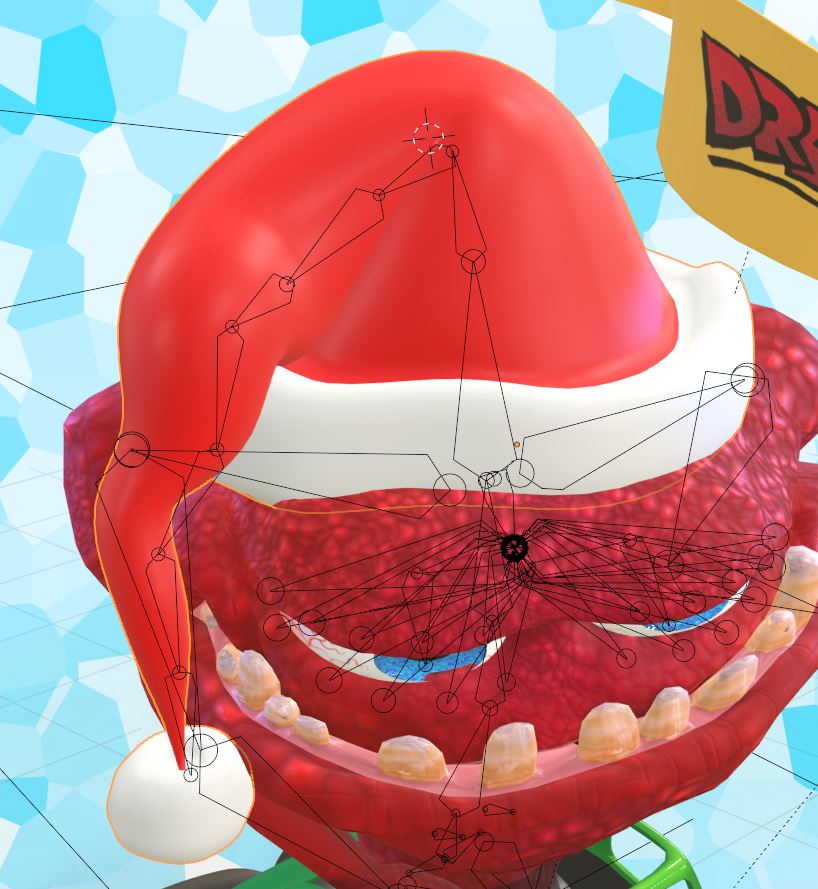

Hi – I have an animated character that I made in Blender. It worked great in Blender and in Verge, but then I added the hat. It looks fine in Blender, but in Verge the mesh falls apart. I have a Subdivision modifier on it, but it happens with or without it. Any ideas?
https://cdn.soft8soft.com/AROAJSY2GOEHMOFUVPIOE:dc5f3c613e/applications/SantaMonster/SantaMonster.html

Attachments:
You must be logged in to view attached files.

2020-12-16 at 10:35 am #36572

Mikhail Luzyanin
Staff

Can you attach a blend file with the hat?

Co-founder and lead graphics specialist at Soft8Soft.

2020-12-16 at 9:37 pm #36615

gregor1
Customer

Here are the parts involved. It’s obviously the rig that’s breaking it, but the worst parts are where the bones have very little influence.

Attachments:
You must be logged in to view attached files.

2020-12-17 at 5:36 am #36618

Mikhail Luzyanin
Staff

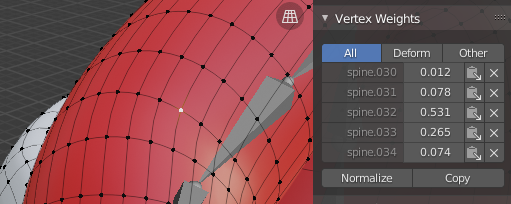

This happens because most of the vertixes has more than 4 weight per vertex, the limit is not more than 4 weights per vertex. You need to clean up your mesh this way that each vertex will have max 4 weight per vertex.

Attachments:
You must be logged in to view attached files.
Co-founder and lead graphics specialist at Soft8Soft.

2020-12-18 at 3:13 pm #36665

gregor1
Customer

Wow – that was a hair-puller, until I found “Limit Total” in the Weights menu in Weight Paint. It got a lot worse before it got better, but then it only took about a second.
Thanks! I got there eventually!
