Projection Mapping

This topic has 7 replies, 3 voices, and was last updated 1 month ago by mkgsr.

Viewing 8 posts - 1 through 8 (of 8 total)

Author

Posts
2024-11-15 at 8:10 am #78792

mkgsr
Participant

I would like to project a texture using projection mapping.
Is there a way to do texture mapping without UV unwrapping?

2024-11-15 at 2:30 pm #78808

Pandern
Customer

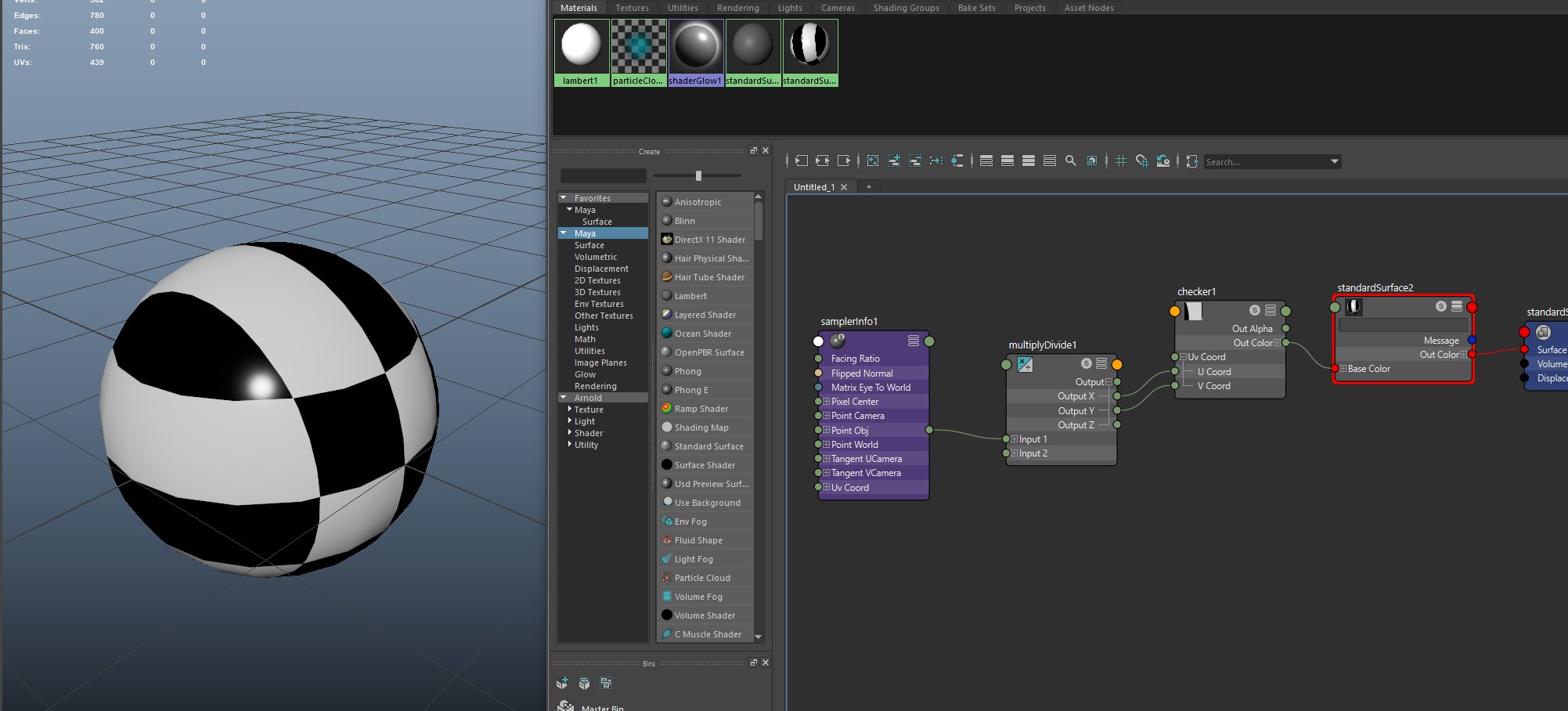

Yes, but only in one axis. planar mapping.

Use a ‘sampler Info’ node input to a ‘multiplyDivide’, and output X,Y or Z into Uv Coord of the texture.

pointObj mappes the texture to the object
pointWorld fixes the texture to the world
pointCamera projects the texture from the camera

Attachments:
You must be logged in to view attached files.

2024-11-15 at 2:41 pm #78810

kdv
Participant

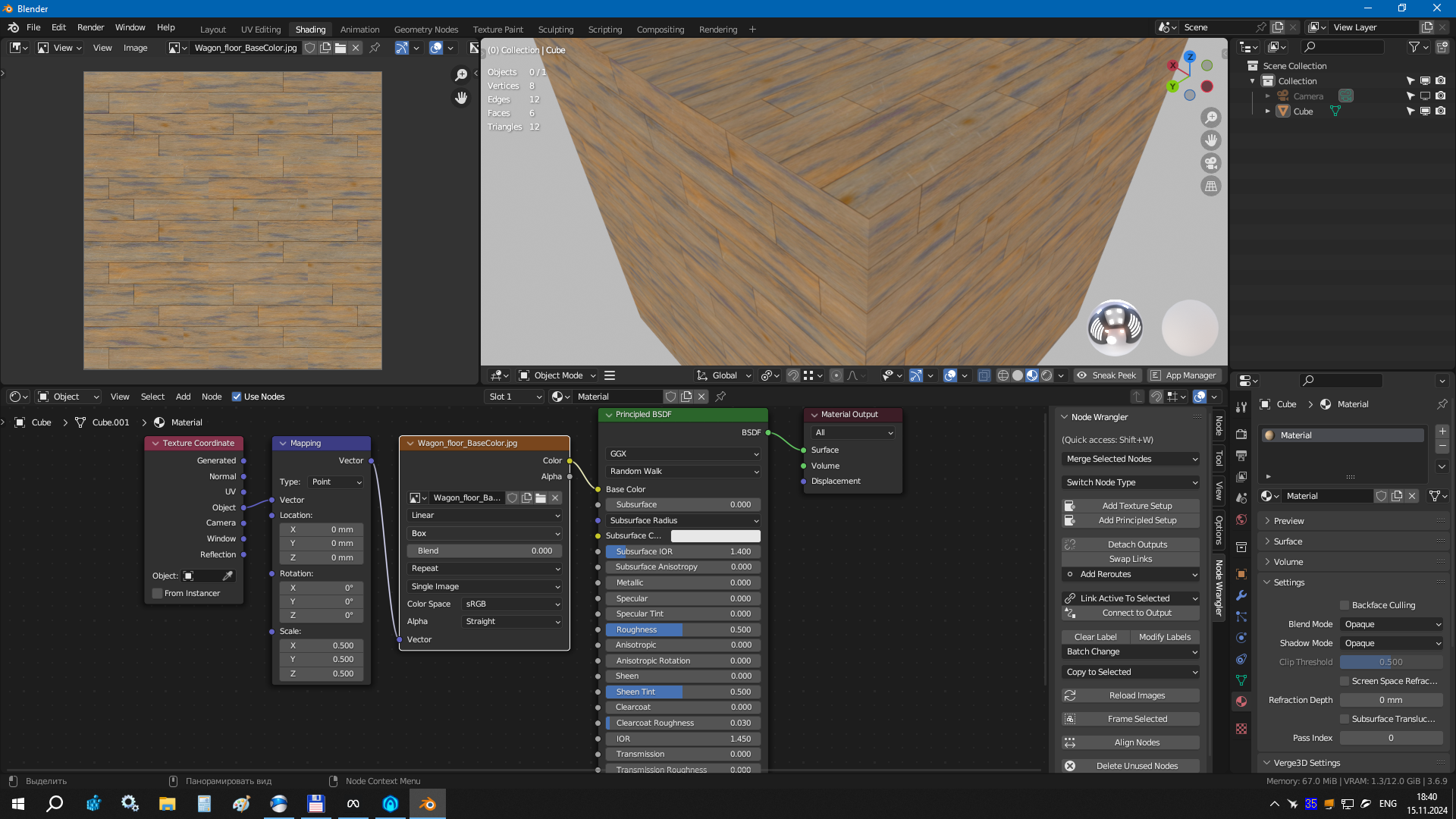

In Blender you can do it this way

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-11-15 at 3:01 pm #78815

Pandern
Customer

Yes, kdv. But unfornutatedly Maya doesn’t have anything equivalent of the object output in texture coordinates in blender.

2024-11-15 at 3:14 pm #78817

kdv
Participant

In the first post I didn’t notice mentioning “Maya” )))

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-11-15 at 3:18 pm #78818

Pandern
Customer

True! But it is posted in ‘Graphics / Maya’ section of the forum. ;)

Maya do have a triplanar mapping, but not supported by verge3D

2024-11-15 at 3:19 pm #78819

kdv
Participant

Ahhh… Now I see. My bad

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-11-18 at 3:05 am #78851

mkgsr
Participant

Thank you！ Pandern, kdv
It was helpful
