Object Disappearing when Set Morph Factor...

Tagged: blender, disappearing object, morph factor, puzzles, shape keys

This topic has 6 replies, 2 voices, and was last updated 2 years, 2 months ago by natecaspar.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
2022-10-02 at 5:52 pm #56307

natecaspar
Participant

Hi there!

I am creating an application that uses shape keys and set morph factor to manipulate a simple 3d model. I am sending data to the verge 3d iframe via postMessage.

The input fields in the parent document have an “input” eventlistener, so any time the input is changed, the data is sent to the iframe. The data is sent via JSON (stringify) and then parsed once it is received in the iframe.

My puzzle listens for a message event, and then sets VARS[”] for each of the 3 shape keys, then calls a protocol which sets the morph factors to the created variables.

The problem is, whenever I change the input, my object disappears and I can’t figure out why.

At one point I had it working, so I know it is possible but I can’t figure out why it no longer functions!

Any help would be greatly appreciated! Thank you.

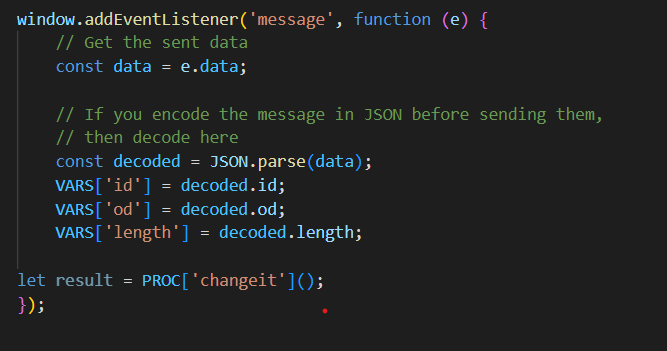

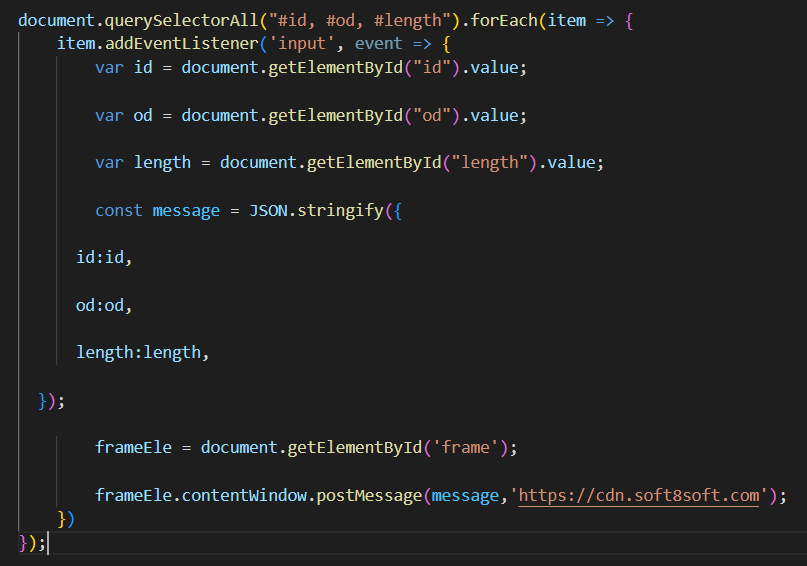

I attached the code that sends the data to the iframe, as well as the code in my puzzle.

Attachments:
You must be logged in to view attached files.

2022-10-02 at 6:25 pm #56311

kdv
Participant

print to console VARS after receiving a message and show changeit function.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-10-02 at 8:46 pm #56314

natecaspar
Participant

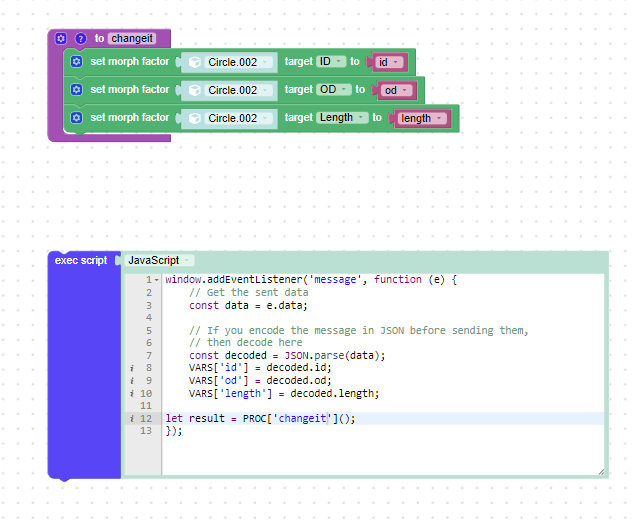

Here’s a screenshot of the full puzzle with the changeit procedure.

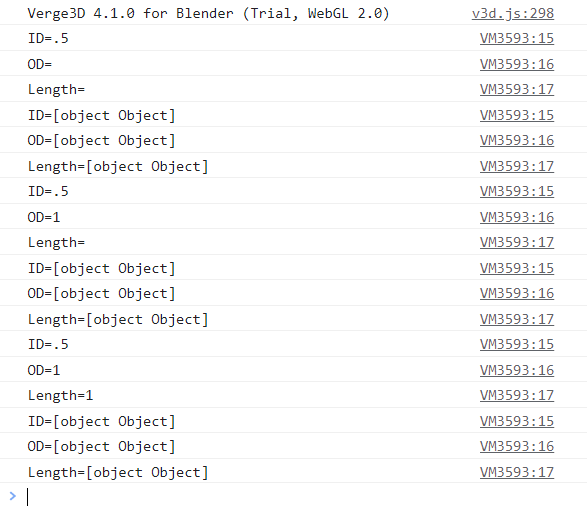

I know that the data is being received and properly parsed, as I can log each VARS upon being received by the iframe. Here’s a screenshot of the VARS being logged.

Thanks!

Attachments:
You must be logged in to view attached files.

2022-10-02 at 8:52 pm #56317

kdv
Participant

ID = [object Object] doesn’t bother you?

https://v3d.net/bdd

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-10-02 at 9:14 pm #56320

natecaspar
Participant

Thanks so much for the help! I’ll try to implement that now. Not sure why the ID = [object Object] is returned as well as the VARS value…

2022-10-02 at 9:44 pm #56322

kdv
Participant

The point is that a morph factor must be a numeric value. If an input value cannot be converted into a number it will kill your model.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-10-02 at 10:47 pm #56326

natecaspar
Participant

Makes sense. I was able to get it to work with your input! thanks so much!
