Need help, please.

This topic has 11 replies, 2 voices, and was last updated 3 years, 4 months ago by NaxosCG.

Viewing 12 posts - 1 through 12 (of 12 total)

Author

Posts
2021-08-17 at 9:53 am #43688

NaxosCG
Customer

Hello again,

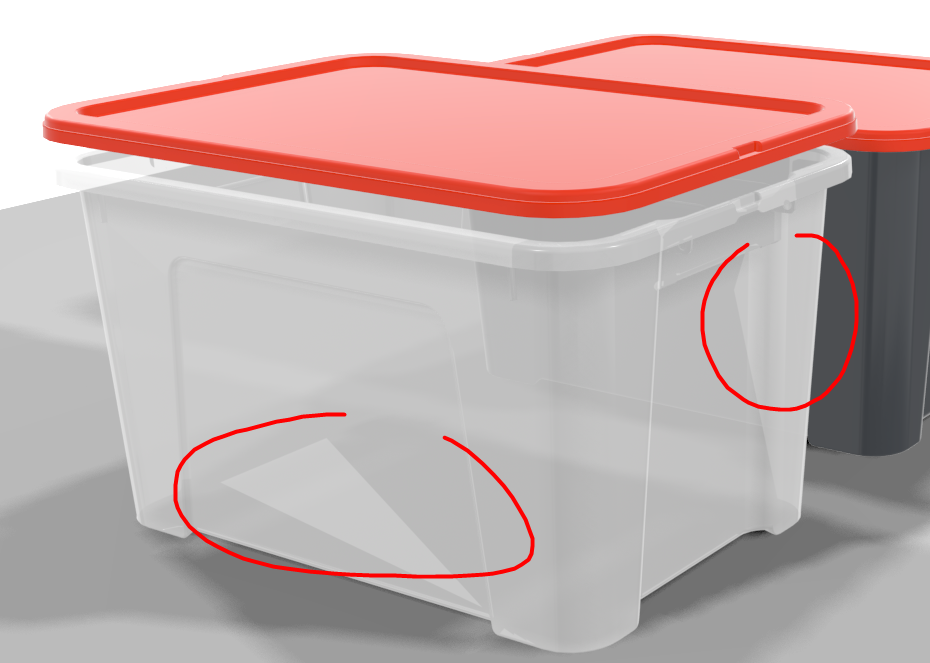

I have reached some almost ok shader for my semi transparent plastic boxes, but i get some bad graphics issues (see picture).

The object is from Nurbs STEP file, so the polygons are not very good, and we can see that when we move around the object.

Beside full remodel of the objects (very long, and customer will not pay for that, as he provides nice steps files), any idea for the shader ?

Here is the verge test :
https://cdn.soft8soft.com/AROAJSY2GOEHMOFUVPIOE:5c0bd316e1/applications/SundisTest2/SundisTest2.html

Here is the max file :
https://we.tl/t-MKCWMesHUC

Any help would be nice.

Attachments:
You must be logged in to view attached files.
"1+1=3... for large values of 1"

2021-08-18 at 11:16 am #43718

Mikhail Luzyanin
Staff

can you resave file in 2020 vfx or just send a fbx, try also alpha hashed transperency type.

Co-founder and lead graphics specialist at Soft8Soft.

2021-08-18 at 11:28 am #43719

NaxosCG
Customer

Here it is :
https://we.tl/t-qdCQ5lbtcY

As you will see i have 3 boxes , one (center one) is the main one, in opaque shader, and looks great in verge3D;

then i have the 2 tests with translucent shaders, in 2 differents mesh import (from nurbs).

As mentionned in my other post, i’m trying to reach this kind of shader (see pictures, please).

thanks.

Attachments:
You must be logged in to view attached files.
"1+1=3... for large values of 1"

2021-08-18 at 12:44 pm #43725

Mikhail Luzyanin
Staff

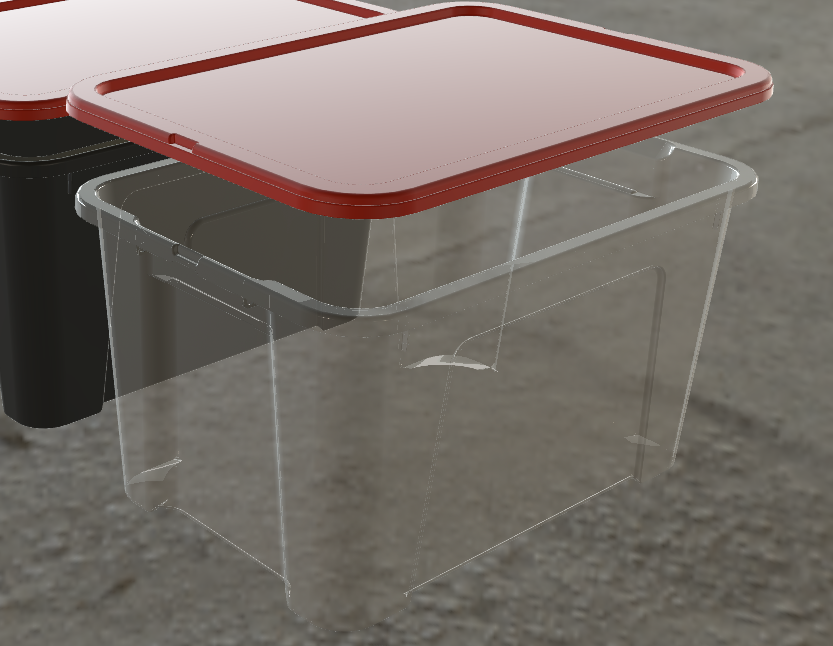

I’ve made some tests with alpha coverage transp tpe and came with this result. You also need to uncheck gltf 2.0 compatible checkbox. I think this is the best that can be achieved with verge3d.

Attachments:
You must be logged in to view attached files.
Co-founder and lead graphics specialist at Soft8Soft.

2021-08-18 at 3:45 pm #43730

NaxosCG
Customer

Thank you for testing, can you share the file, please ?

Maybe i could duplicate the mesh, set flipped normals and use some whity semi opaque shader, in addition with your test…

"1+1=3... for large values of 1"

2021-08-19 at 8:24 am #43757

Mikhail Luzyanin
Staff

Sorry seems ive deleted it. But the material simple, just set up a transperency (don’t foreget to set thin-wall checkbox) them choose Alpha Coverage in the Verge3D settings of the material.

Co-founder and lead graphics specialist at Soft8Soft.

2021-08-19 at 8:33 am #43758

NaxosCG
Customer

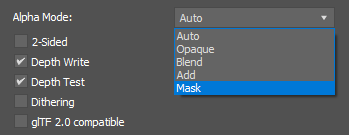

Sorry, but i don’t find alpha coverage choice.

Attachments:
You must be logged in to view attached files.
"1+1=3... for large values of 1"

2021-08-19 at 8:53 am #43762

Mikhail Luzyanin
Staff

Seems like you have old engine, try to update it to last version.

Co-founder and lead graphics specialist at Soft8Soft.

2021-08-19 at 2:21 pm #43781

NaxosCG
Customer

3.7.1 with 3dsmax 2022…

"1+1=3... for large values of 1"

2021-08-20 at 9:50 am #43866

Mikhail Luzyanin
Staff

You need to wait 3.8 release or use last 3.8 pre.

Co-founder and lead graphics specialist at Soft8Soft.

2021-08-20 at 1:11 pm #43873

NaxosCG
Customer

ok thank you

"1+1=3... for large values of 1"

2021-08-24 at 9:50 am #43953

NaxosCG
Customer

Mikhail Luzyanin wrote:

You need to wait 3.8 release or use last 3.8 pre.

I’ve installer pre4 of v3.8 (no production in progress, so i can try beta
And bugs are gone, thank you !

"1+1=3... for large values of 1"
