2022-12-12 at 2:40 am #58980

kdv
Participant

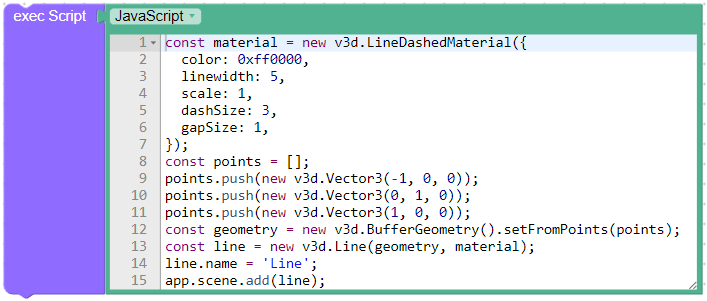

what’s the problem? the line is not dashed, the line is not thick. it’s just a thin line. and it’s red!!! it’s a miracle, not less ))) v3d.js cannot draw thick dashed lines?

P.S. Is it possible to use LineHTML without an HTML element? Just to draw it between two points.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-12-12 at 1:34 pm #58986

Alexander Kovelenov
Staff

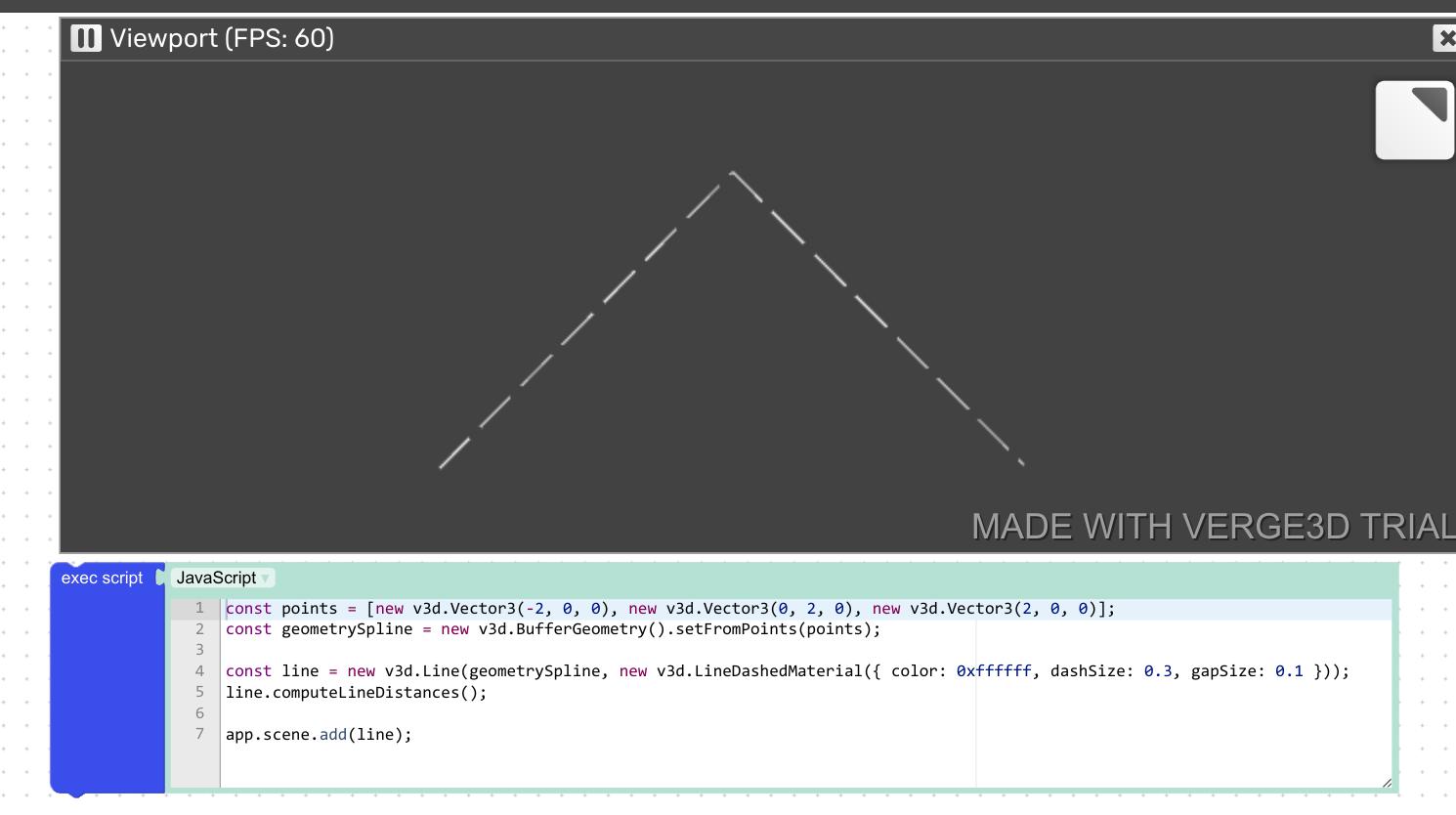

Hi, looks fine:

It’s possible you forgot computeLineDistances()

Attachments:
You must be logged in to view attached files.
Soft8Soft Tech Chief
X | FB | LinkedIn

2022-12-12 at 5:02 pm #58994

kdv
Participant

Yes, you’re right. The only problem now is the thickness which is always 1…

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-12-13 at 7:35 am #59009

Alexander Kovelenov
Staff

Appears to be a hardware limitation. Check out WebGL report to confirm v3d.net/w

Soft8Soft Tech Chief
X | FB | LinkedIn

2022-12-13 at 9:51 pm #59040

kdv
Participant

Yeap. That’s why your LineHTML is not a line. In fact it’s a rectangle. It can be thick, but it can’t be dashed. There are no ideal things in the world )))

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-12-14 at 7:59 am #59048

Yuri Kovelenov
Staff

kdv wrote:

It can be thick, but it can’t be dashed.

Added a task to our dev tracker.

Chief 3D Verger | LinkedIn | Twitter

2022-12-14 at 11:31 pm #59057

kdv
Participant

Can you add a task to draw LineHTML just between two points? With straching ability. Or is it possible now? How?

P.S. Solved. Really simple )))

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-07-30 at 10:36 am #76269

zirenjian
Customer

Can this line be selected and colored in real-time?
