jlTF 2.0 compatible materials

This topic has 13 replies, 4 voices, and was last updated 2 years, 4 months ago by Mikhail Luzyanin.

Viewing 14 posts - 1 through 14 (of 14 total)

Author

Posts
2022-06-27 at 12:25 pm #53661

kdv
Participant

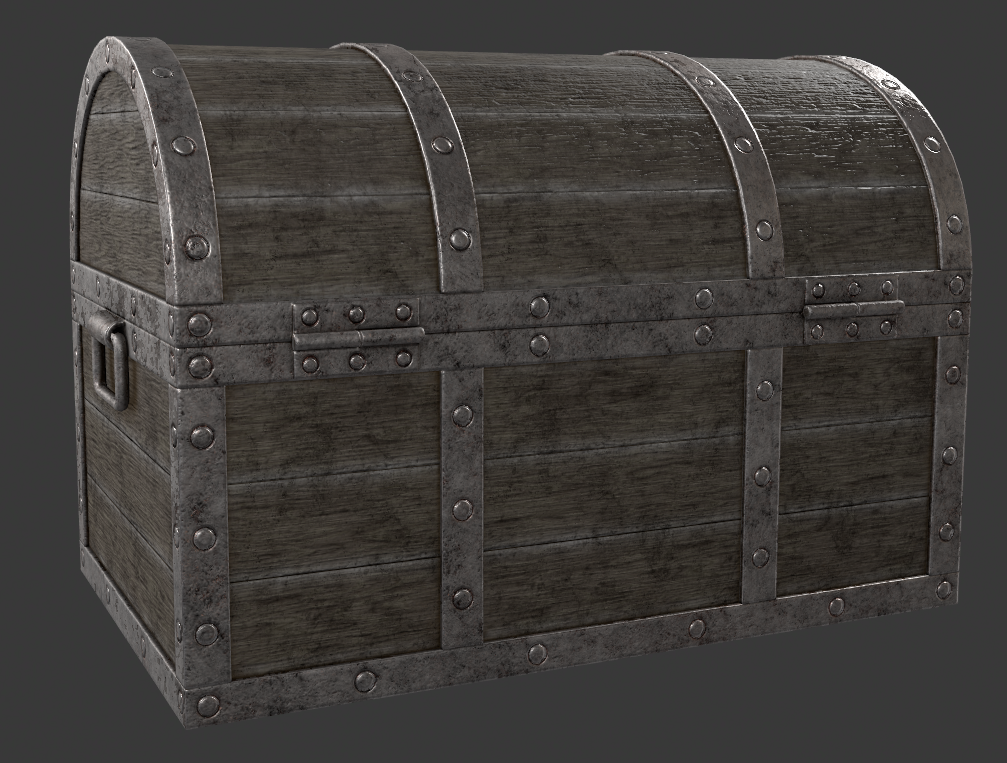

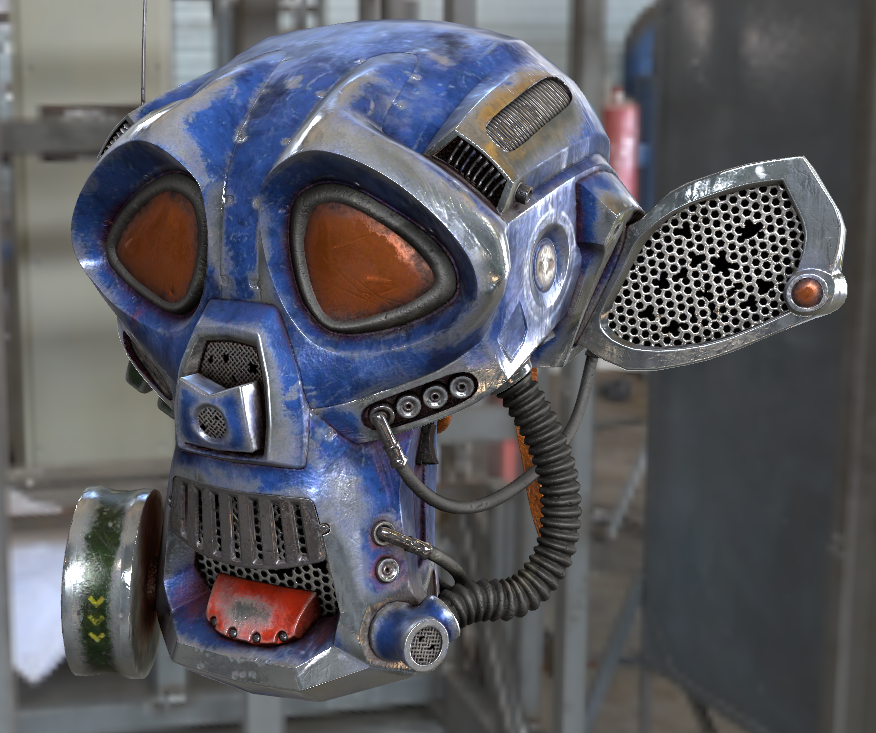

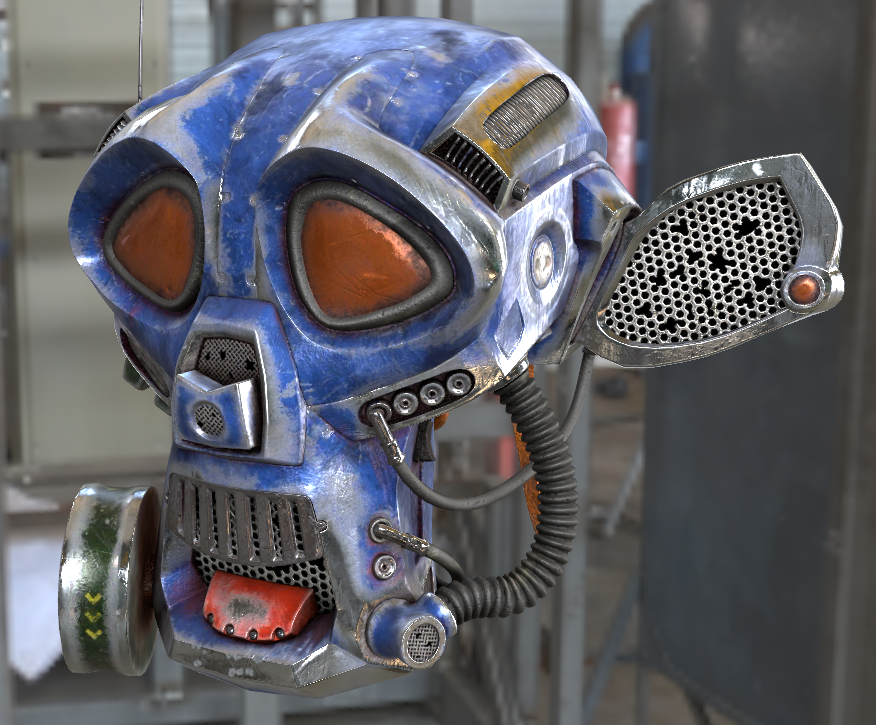

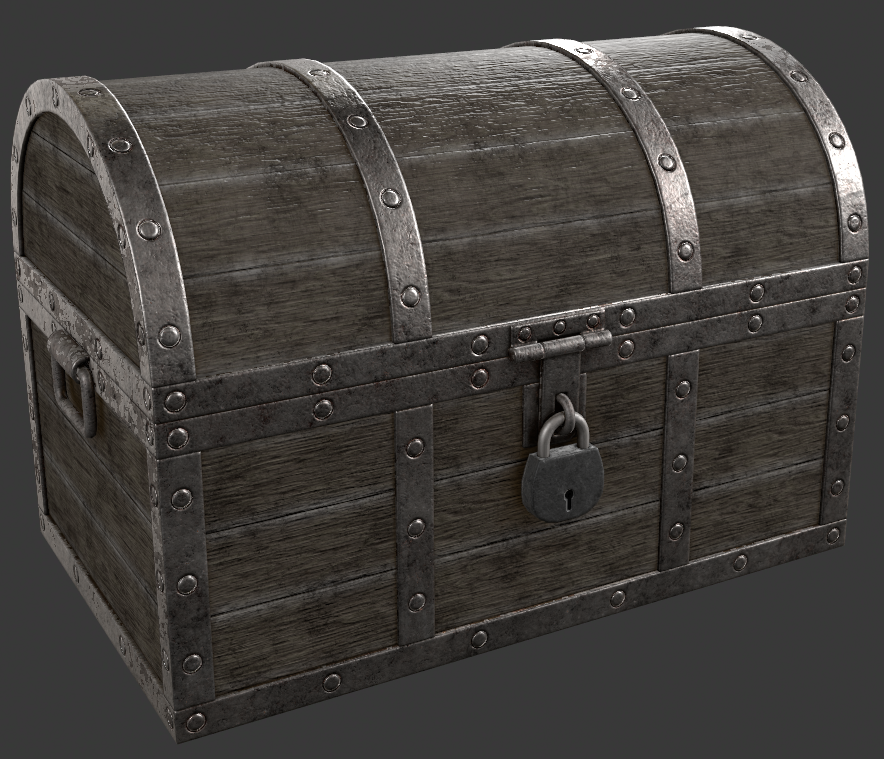

We have the demo app “Gltf Compat” and it works fine whether jlTF 2.0 compatible is checked or not. The difference is minimal (jlTF 2.0 compatible material looks a little darker)

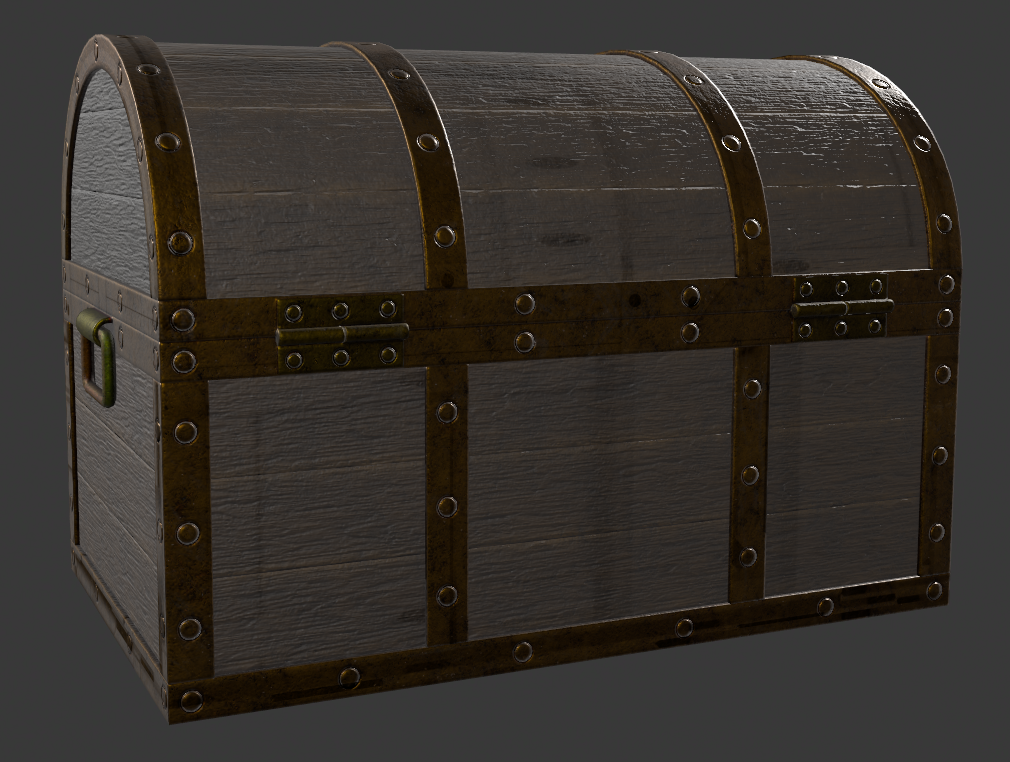

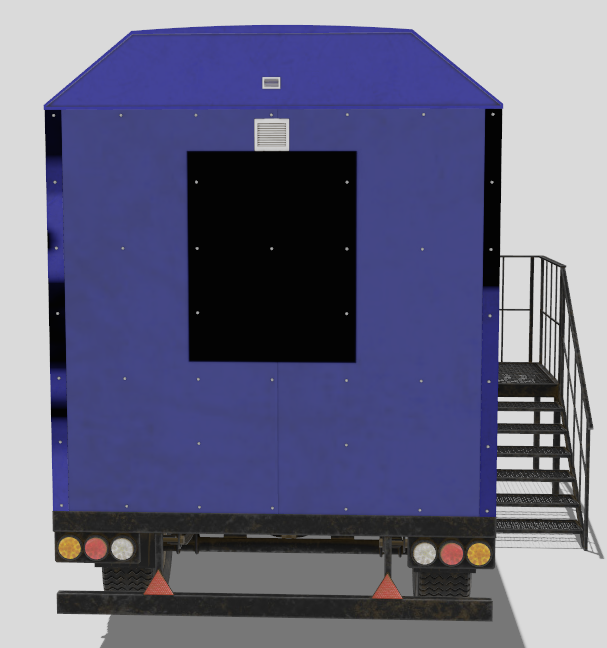

But when I activate jlTF 2.0 compatible in my application it looks awfull )))

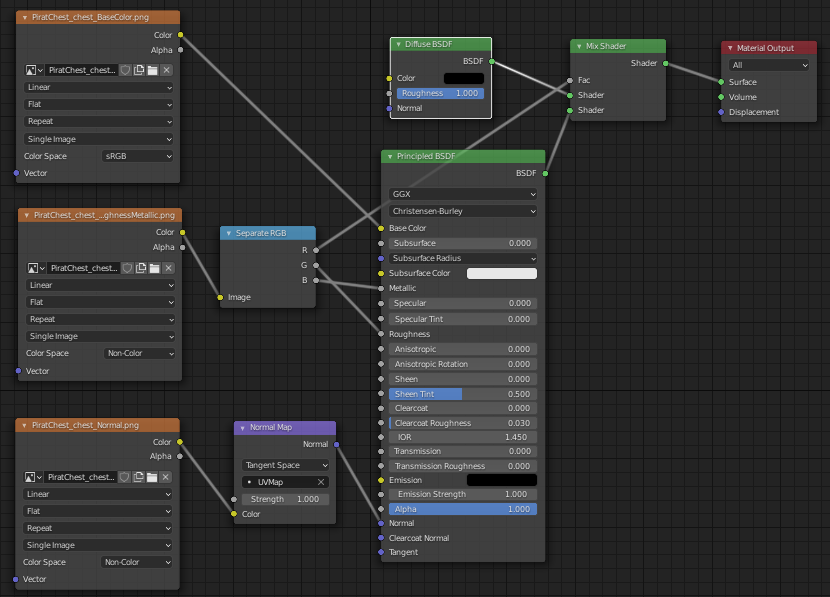

The texture set is the same (UE4 set), the material nodes are the same, but the result is different. Any ideas what’s going wrong?

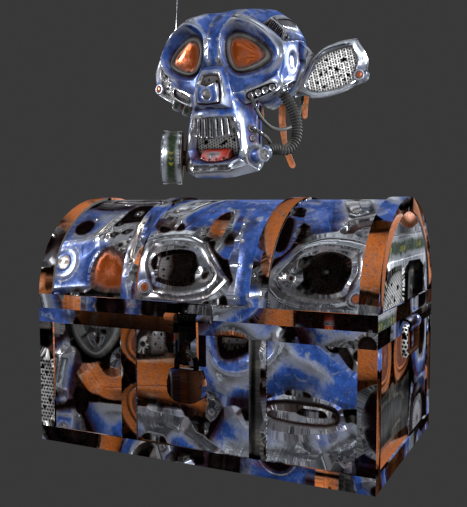

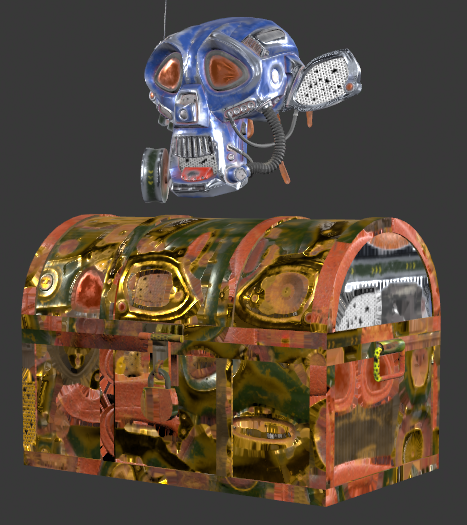

p.s. If I apply the same matrerial to both objects, the colors look the same in Blender but really different in Verge3D )))

Seems that issue is in the mesh itself. But what exactly is wrong?

Attachments:
You must be logged in to view attached files.
Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-27 at 1:29 pm #53669

Mikhail Luzyanin
Staff

Can you share the mesh?

Co-founder and lead graphics specialist at Soft8Soft.

2022-06-27 at 1:48 pm #53671

kdv
Participant

Google drive

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-28 at 9:55 am #53700

Alexander Kovelenov
Staff

Hi,
There are vertex colors assigned on your mesh. According to glTF 2.0 standard, base colors of the materials are multiplied by vertex colors automatically. So you need to remove them from the mesh.

Soft8Soft Tech Chief
X | FB | LinkedIn

2022-06-28 at 10:25 am #53701

kdv
Participant

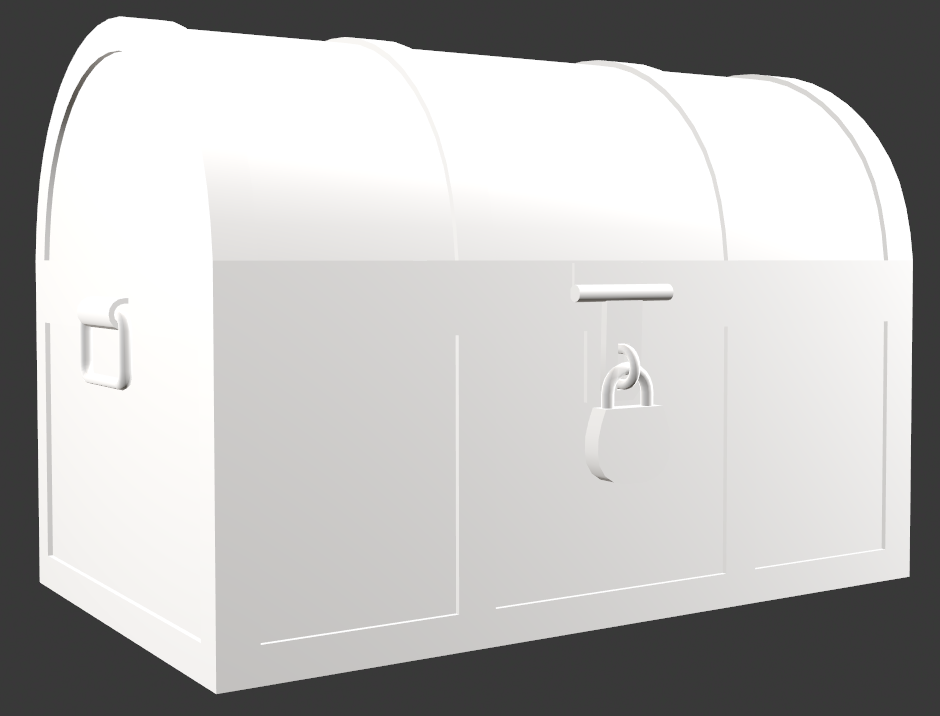

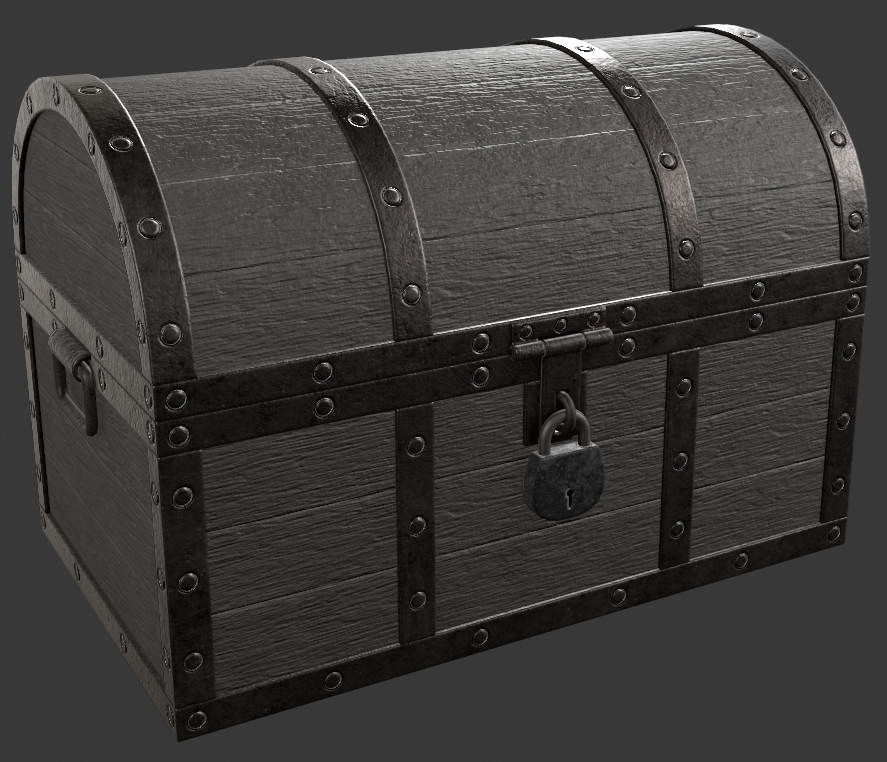

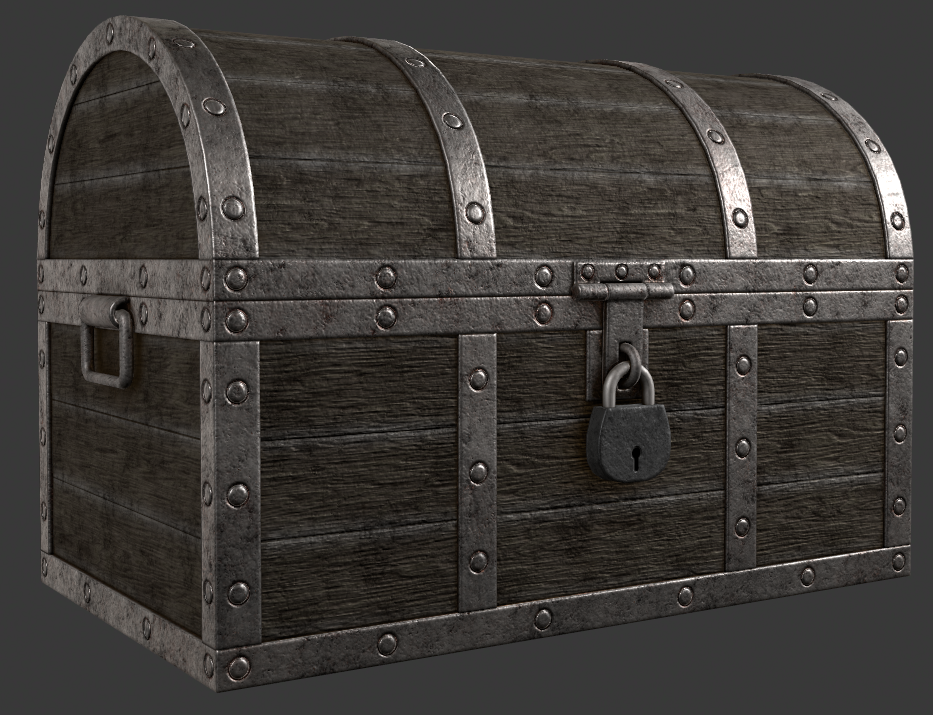

Much better without virtex colors but the difference is still significant…

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-28 at 11:21 am #53706

Alexander Kovelenov
Staff

Checked again and found more issues:

1) Specular input of Principled BSDF is not supported by glTF, you need to specify default value (0.5) to make Blender viewport look closer to Verge3D.

2) The second UV (unused in Blender) is assigned to AO (defined by glTF 2.0 standard as well). To use only the first one, you need to cleanup your meshes.

3) You also need to pay attention to how AO is handled by Blender and glTF 2.0. In Blender it affects both direct lights sources and indirect lighting (provided by World shader). In glTF 2.0 it affects only indirect lighting. That’s why your AO map looks not so contrast when rendered with Verge3D.

Soft8Soft Tech Chief
X | FB | LinkedIn

2022-06-28 at 11:42 am #53708

kdv
Participant

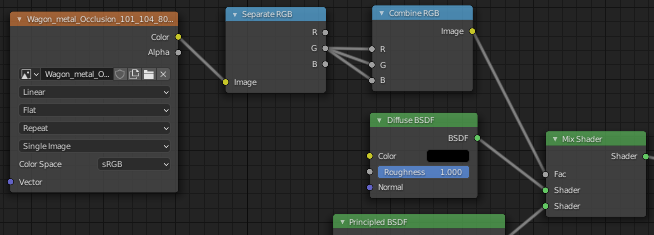

Separate RGB node works strange if I try to take AO image from G channel

In fact, the AO image is taken from R channel )))

Recombinig RGB removes this issue

Also texture scaling doesn’t work…

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-28 at 1:45 pm #53720

Pascal
Customer

kdv wrote:

kdv77kdv
Participant

Separate RGB node works strange if I try to take AO image from G channel

Setting the Color Space to NonColor in this case might help.

2022-06-28 at 1:54 pm #53721

kdv
Participant

No, it doesn’t matter. RGB channels contain three different AO images and the correct image for this model is in G channel, but with jlTF 2.0 compatible active after exporting R channel is used instead of G… Looks like it’s also a standard layout for jlTF: R – occlusion, G – roughness, B – metallic…

Glossy and Diffuse shaders are not supported?

Verge3D team, please, make your USDZ export independent of this jlTF 2.0 compatibility…

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-29 at 12:07 am #53733
Pascal
Customer
glTF 2.0 spec says:
```
"metallicRoughnessTexture": {
            "allOf": [ { "$ref": "textureInfo.schema.json" } ],
            "description": "The metallic-roughness texture.",
            "gltf_detailedDescription": "The metallic-roughness texture. The metalness values are sampled from the B channel. The roughness values are sampled from the G channel. These values **MUST** be encoded with a linear transfer function. If other channels are present (R or A), they **MUST** be ignored for metallic-roughness calculations. When undefined, the texture **MUST** be sampled as having <code>1.0</code> in G and B components."
        },
```
I guess you want to use glTF 2.0, right? Cause I don’t know about

jlTF 2.0 compatible

and guess it is just a typo.

However, I never tried it the way you describe it. 3 AOs in one image, that might be working within blender and maybe also in Verge3D but not in glTF standard?

I hope you will find a good solution. Let us know.
Best regards!
2022-06-29 at 12:37 am #53736

kdv
Participant

Pascal wrote:

and guess it is just a typo.

It’s not a typo, it’s Verge3D option in Blender )))

Unfortunately, Verge3D USDZ export doesn’t work without this option…

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2022-06-29 at 7:48 am #53741

Mikhail Luzyanin
Staff

In gltf compat R channel only used for AO, G for roughness and B for metalness, not way to change it. USDZ and gltf compat works independent.

Co-founder and lead graphics specialist at Soft8Soft.

2022-06-29 at 8:50 am #53748
kdv
Participant
Mikhail Luzyanin wrote:

USDZ and gltf compat works independent.

Then why export to USDZ puzzle works only with gltf compat materials?
```
(
    customLayerData = {
        string creator = "Three.js USDZExporter"
    }
    metersPerUnit = 1
    upAxis = "Y"
)

def "Materials"
{

}
```
USDZ file is created and can be downloaded to iOS Quick viewer, but its size is 321B and it contains nearly nothing.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.
2022-06-29 at 8:58 am #53749

Mikhail Luzyanin
Staff

In fact export to USDZ it’s just and compressed export to GLTF comapt file, but if you want to use USDZ without gltf compat in the app when exporting from blender.

Co-founder and lead graphics specialist at Soft8Soft.
