Is there a way to name children of clones

Home Forums Programming Is there a way to name children of clones

Tagged:

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • #78605
    kvdml
    Customer

    Hi,
    verge 4.71
    I appended a scene, panel.glb, which consists of an empty, ‘panel’, and two child geometries: ‘panel_frame’ and ‘panel_glass’.
    Like this:
    * panel
    ->panel_frame
    ->panel_glass

    When I make clones of panel, the two children are cloned as well. But only panel receives a new name:
    [“panel”, “panel_frame”, “panel_glass”]
    [“panel2”, “panel_frame”, “panel_glass”]
    [“panel3”, “panel_frame”, “panel_glass”]

    My question:
    A. is there a way to rename panel_frame to ‘panel frame_2″ & “panel frame_3”, because I can not target these objects with setObjTransform or setMorphFactor like this

    B. If I can’t rename the objects, is there a way I can target these? Like panel2.panel_frame?

    C. Or is it better to make separate clones of panel_frame and panel_glass and parent to a new parent?

    thx

    #78606
    Brameister
    Participant

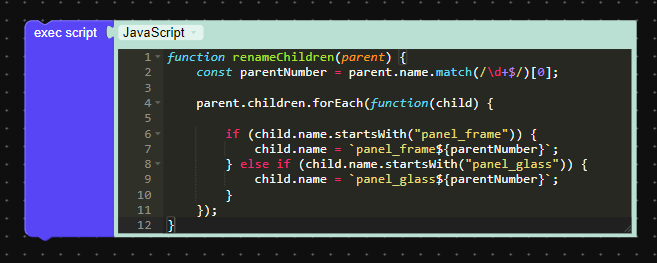

    Maybe you could use a short function in an exec script puzzle to rename the children, something like this:

    Attachments:
    You must be logged in to view attached files.
    #78616
    kvdml
    Customer

    thx,
    had to rework it a bit, but I got it working like this:

    function renameChildrenOfClone(clonedObjectName) {
    // Retrieve the cloned object from the scene using its name
    const clonedObject = app.scene.getObjectByName(clonedObjectName);

    // Extract the index number from the parent object’s name
    const indexMatch = clonedObjectName.match(/\d+$/);
    const index = indexMatch ? indexMatch[0] : ”;

    for (let i = 0; i < clonedObject.children.length; i++) {
    const child = clonedObject.children;

    if (child.name.startsWith(‘panel_frame’)) {
    child.name = panel_frame${index};
    } else if (child.name.startsWith(‘panel_glass’)) {
    child.name = panel_glass${index};
    }
    }
    }

    • This reply was modified 1 month, 1 week ago by kvdml.
    #78617
    kvdml
    Customer

    this is my clone object before and after the rename function

    [‘panel2’, ‘panel_frame’, ‘panel_glass’]
    [‘panel2’, ‘panel_frame2’, ‘panel_glass2’]

    [‘panel3’, ‘panel_frame’, ‘panel_glass’]
    [‘panel3’, ‘panel_frame3’, ‘panel_glass3’]
