How to use clipping plane in 3 direction?

Home › Forums › Graphics / Blender › How to use clipping plane in 3 direction?

Tagged: ,

Viewing 11 posts - 1 through 11 (of 11 total)
  • Author
    Posts
  • 2022-01-16 at 2:41 pm #48666
    mashud008
    Customer

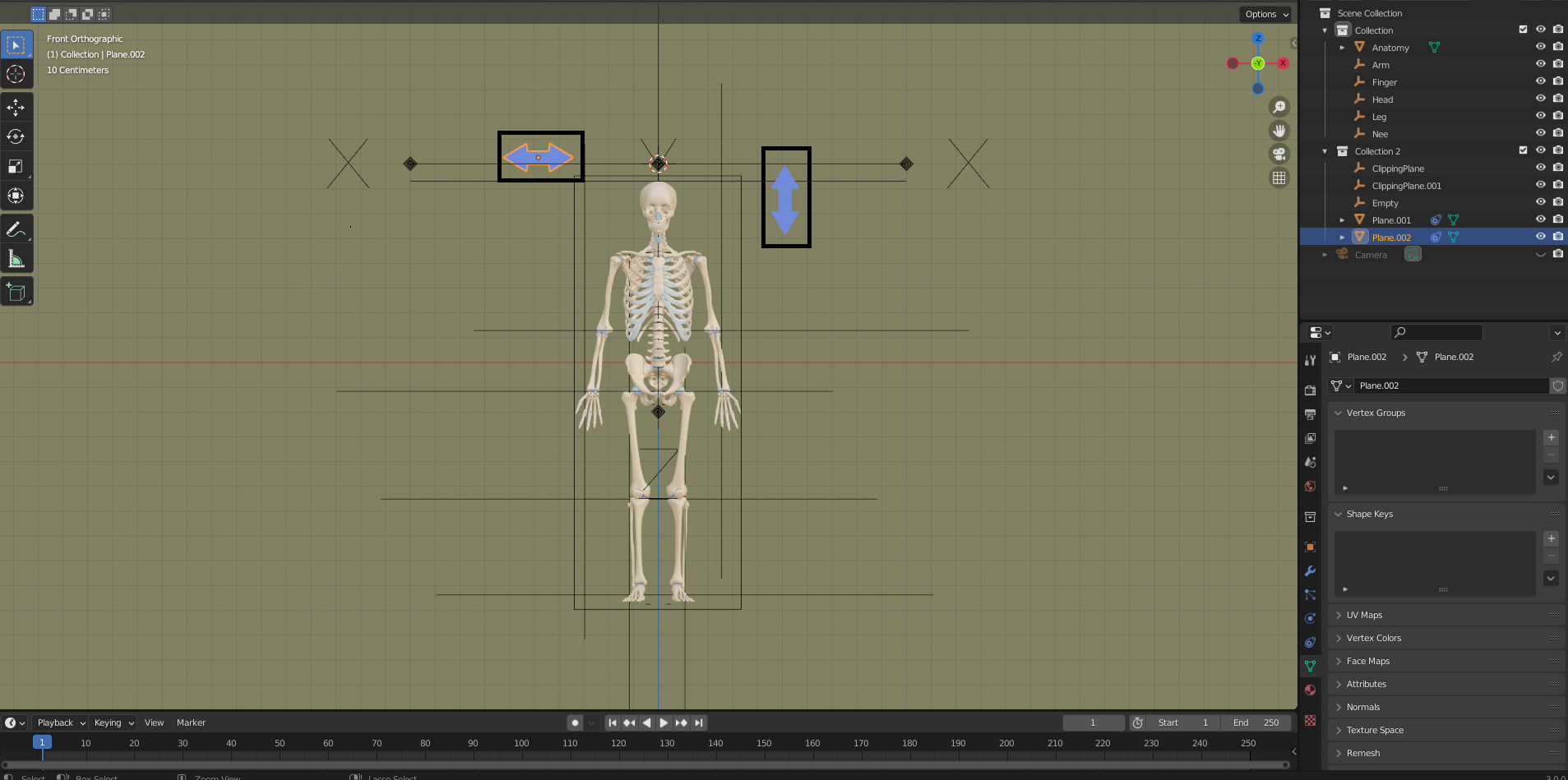

    Is there any way to cross-section an object in three ways? What to do from the top, from the right, and from the back? I’m trying to but can not do this. I’m using clipping planes. It’s working in one direction, but I need clipping planes in 3 directions. Like up and down, left and right, back, and front side.
    It works only up-down direction.

    Attachments:
    You must be logged in to view attached files.
    2022-01-17 at 8:45 am #48678
    Yuri Kovelenov
    Staff

    hi,

    multiple clipping planes are indeed supported. The direction of the normals matters for proper cross section.

    Chief 3D Verger | LinkedIn | Twitter

    2022-01-18 at 3:05 am #48695
    mashud008
    Customer

    Thank you for your reply.Me and gliftek try to this but we cannot make it. Can you explain this please

    2022-01-18 at 6:03 am #48698
    Yuri Kovelenov
    Staff

    perhaps you could try flipping the normal for the plane and see if it starts to work

    Chief 3D Verger | LinkedIn | Twitter

    2022-01-18 at 6:42 am #48700
    mashud008
    Customer

    Do I use a clipping plane object? Or use three clipping objects for three directions?

    2022-01-19 at 2:35 am #48722
    mashud008
    Customer

    Can you try to fix this file? Just a simple example.
    Please

    2022-01-19 at 7:48 am #48726
    Mikhail Luzyanin
    Staff

    You need to use three clipping planes.

    Co-founder and lead graphics specialist at Soft8Soft.

    2022-01-19 at 2:28 pm #48738
    mashud008
    Customer

    Mikhail, Not working boss :cry: :cry: :cry: :cry:

    2022-01-20 at 11:51 am #48764
    Yuri Kovelenov
    Staff

    hi,

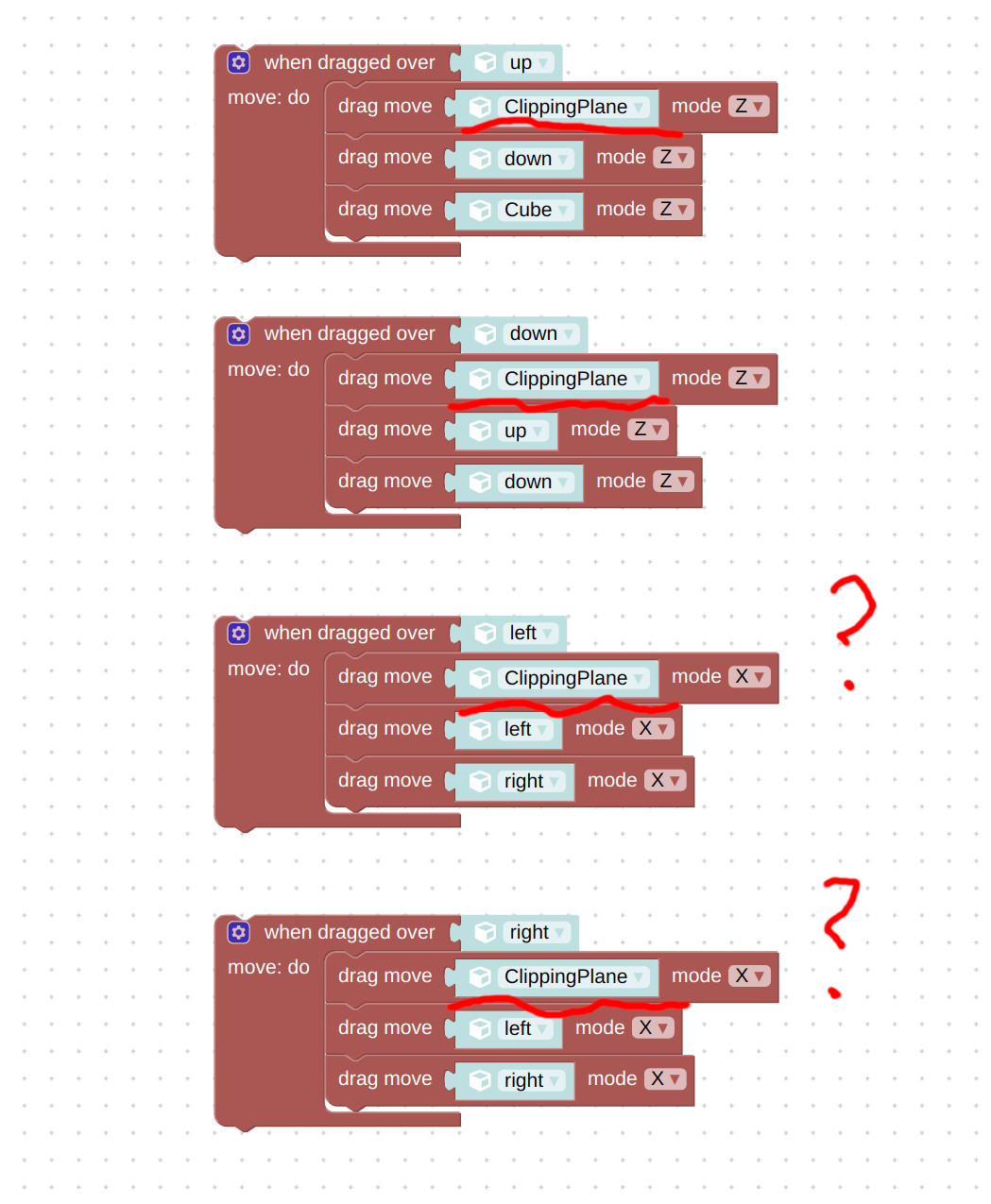

    I checked your puzzles. You are using the same clipping plane for moving in 2 directions. Should not it be 2 different planes?

    Attachments:
    You must be logged in to view attached files.

    Chief 3D Verger | LinkedIn | Twitter

    2022-01-20 at 1:24 pm #48770
    Mikhail Luzyanin
    Staff

    Here’s an example for you.

    Attachments:
    You must be logged in to view attached files.

    Co-founder and lead graphics specialist at Soft8Soft.

    2022-01-20 at 1:51 pm #48772
    mashud008
    Customer

    Thank you, everyone. It’s working now. Just changing the clipping plane direction
