Dimension Annotation

Home › Forums › General Questions › Dimension Annotation

Viewing 2 posts - 1 through 2 (of 2 total)
  • Author
    Posts
  • 2023-02-06 at 6:37 pm #60175
    rossischolar
    Participant

    Hello everyone.

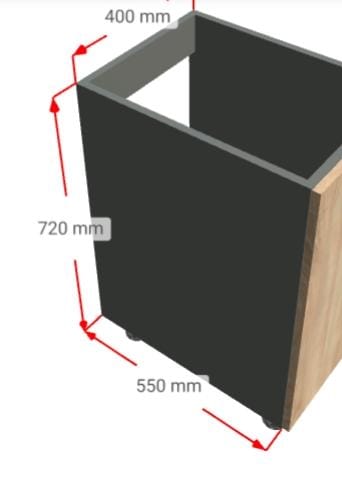

    Is it possible to us to create a dimension annotation (like in the attachment) on Verge3D? I have read about the Annotation but I don’t know how to get dimension data (from the model or another input) to be displayed on the Annotation.

    Thank you in advance.

    Regards.

    Attachments:
    You must be logged in to view attached files.
    2023-02-06 at 6:51 pm #60178
    kdv
    Participant

    Not exactly like on the screenshot but possible and possible

    Puzzles and JS coding. Fast and expensive.

    If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.
