3ds MAX missing DLL issue for non-verge users

This topic has 10 replies, 2 voices, and was last updated 1 year, 3 months ago by Alexander Kovelenov.

Viewing 11 posts - 1 through 11 (of 11 total)

Author

Posts
2021-01-11 at 7:35 pm #37243

dman3d
Customer

MAX 2019.3.4 – Verge 3.5.0

This is assuming this is a verge error as I cannot seem to google and other reference for the error other than verge.

We are having an issue where even with “auto-assign verge params” turned off other users on our team without verge are getting an error on opening files I have touched.

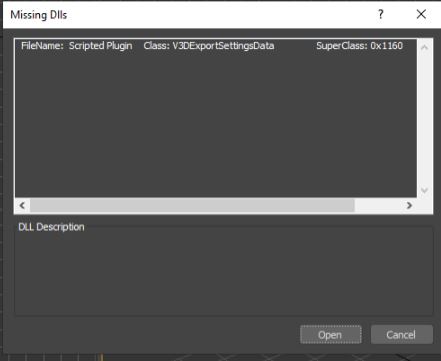

(see below and attached image)
FileName: Scripted Plugin Class: V3DExportSettingsData SuperClass: 0x1160

This is also causing issues with Deadline on our render farm. The files just continuously throw errors. We are testing telling deadline to ignore missing dlls in the interim.

I have tried “remove verge params” script with no luck with regard to this specific error. It appears to remove params but not whatever this is.

This is at present a critical problem as we have jobs that need to be completed very soon and any assistance is appreciated. I am also worried that any of our asset file I have touched may have this issue affecting anyone using those same assets from our asset library.

Attachments:
You must be logged in to view attached files.

2021-01-11 at 8:18 pm #37247

dman3d
Customer

Update: Using ignore missing dlls with Deadline did not work. Still fails on yoo many errors and never starts.

2021-01-11 at 9:32 pm #37249

dman3d
Customer

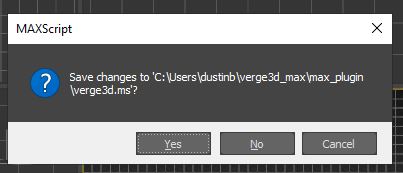

I merged a files exhibiting the issue into a new file and on exit the attached message.

Attachments:
You must be logged in to view attached files.

2021-01-12 at 7:35 am #37269

Alexander Kovelenov
Staff

Hi,
can you please attach the max file which causes the issue (possibly to enterprise support email if you need to keep it private)?
As for verge3d.ms it should be kept unedited.

Soft8Soft Tech Chief
X | FB | LinkedIn

2021-01-12 at 10:09 am #37282

Alexander Kovelenov
Staff

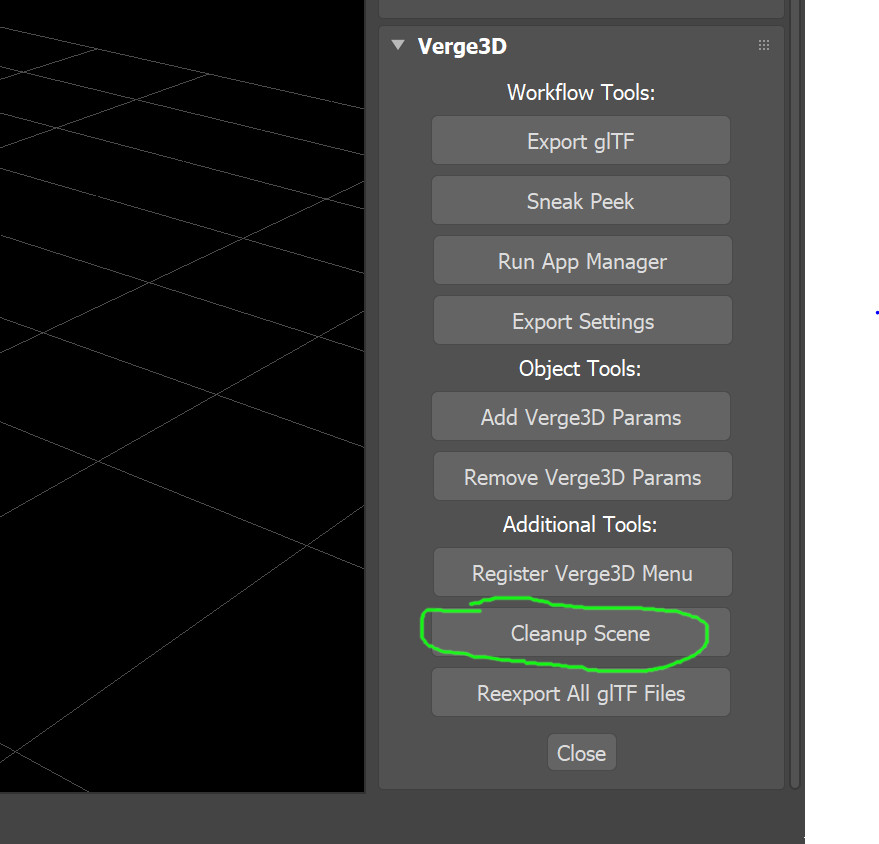

I just checked similar setup (two 3ds Max installations one with Verge3D and one without). It might happen if did not cleaned up your scene properly. Please check out “Cleanup Scene” button in utilities:

Attachments:
You must be logged in to view attached files.
Soft8Soft Tech Chief
X | FB | LinkedIn

2021-01-12 at 1:48 pm #37298

dman3d
Customer

I did try “clean up scene” will test again to ensure this and will send along a test file shortly.

2021-01-12 at 2:04 pm #37299

dman3d
Customer

of course this morning I cannot re-create the error. So I hope this means clean up did the trick or whatever worked. I will have a co-worker also load the file on another machine without verge to see the result.

2021-01-12 at 2:25 pm #37300

dman3d
Customer

It appears the clean up file worked or at least something did. The co-worker is reporting the file opens with no errors for him. I confirmed this opening the same file on another machine without verge.

Thanks for the help. If for any reason this recurs will post to this thread.

2021-01-12 at 2:38 pm #37303

dman3d
Customer

Is there a way to launch MAX with Verge suppressed? Where I can have two ways to launch max, with and without verge loaded on the same machine without uninstall/reinstall?

2021-01-12 at 3:34 pm #37312

Alexander Kovelenov
Staff

Glad it helped! To completely disable Verge3D you can temporary remove path to Verge3D plugin in Max system paths and restart 3ds Max. Anyway, I’m going to add such disabling feature to our TODO list.

Soft8Soft Tech Chief
X | FB | LinkedIn

2023-08-18 at 6:59 am #66228

Alexander Kovelenov
Staff

Hi,
I have some updates regarding this issue. From now on you can use the cleanup script to remove Verge3D traces from your Max scenes (even if you have no Verge3D installed). Just drag-and-drop this script to your scene.

Soft8Soft Tech Chief
X | FB | LinkedIn
