2024-06-07 at 7:03 am #74603

visualizer
Customer

Hi
Here is the small project of overall 3D plant layout in web browser for viewing and communicating with team members during work in progress. It might take couple of minutes to load since huge layout is included.
You may click on the roof of processplant1 for example – this type of several interactions are built for various locations

https://www.horizonfx.net/sample/company/index.html
We have built a complete VR version of the same with Quest3.

This link will be available & accessible for limited time.

2024-06-07 at 7:47 am #74605

Yuri Kovelenov
Staff

not loading for me unfortunately

Chief 3D Verger | LinkedIn | Twitter

2024-06-07 at 10:03 am #74610

kdv
Participant

The same. Have been waiting long enough but with no result.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-06-07 at 11:06 am #74618

visualizer
Customer

Again?

Check this link. Now published on Verge network.

https://v3d.net/108q

2024-06-07 at 11:11 am #74619
Yuri Kovelenov
Staff
Looking good!
- This reply was modified 5 months, 1 week ago by Yuri Kovelenov.
Chief 3D Verger | LinkedIn | Twitter
2024-06-07 at 12:30 pm #74622

kdv
Participant

visualizer wrote:

It might take couple of minutes to load since huge layout is included

4 seconds from soft8soft.com (with cache cleared)

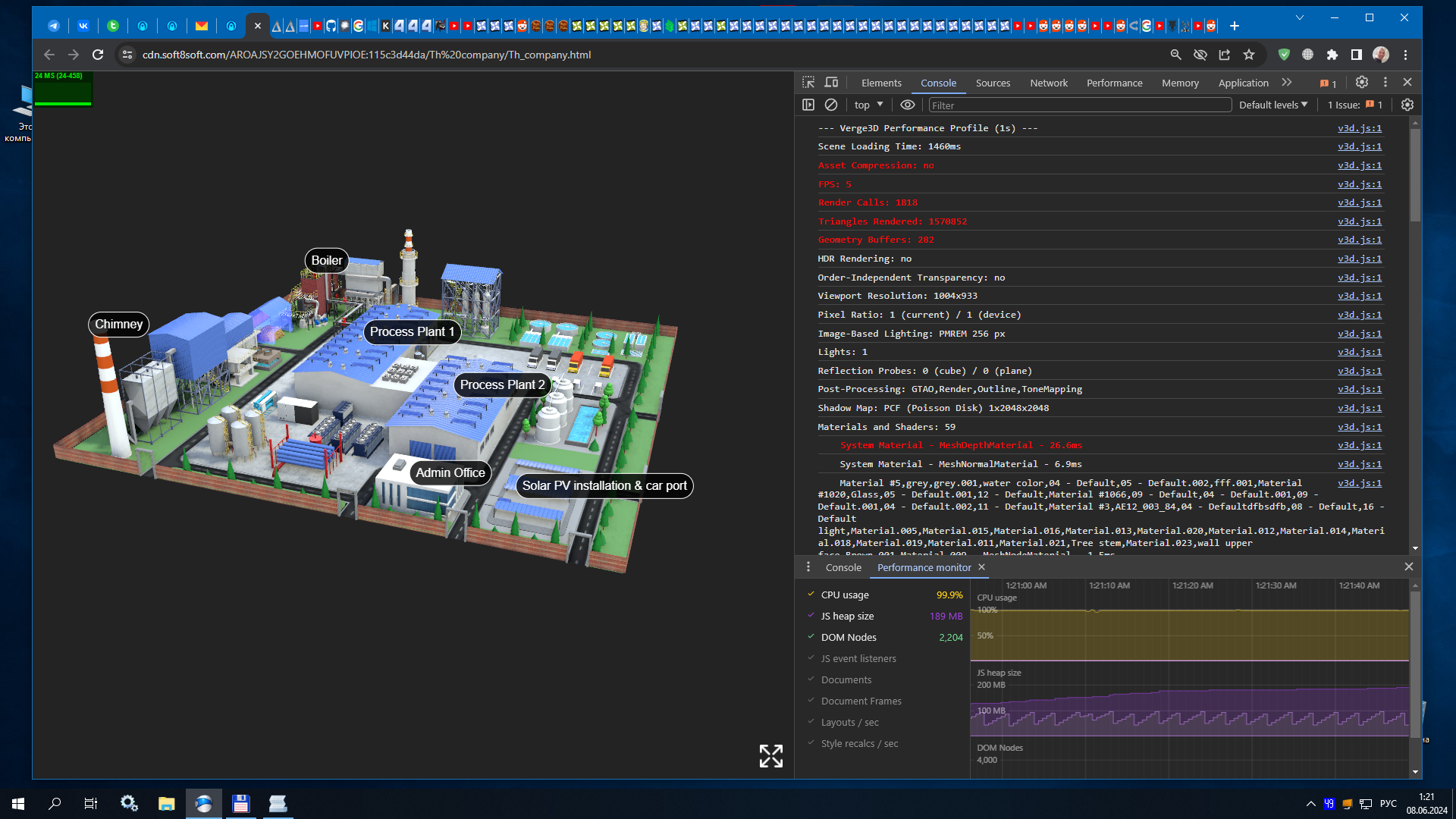

But there are too many render calls (1800+). You’d better consider using “batch geometry” puzzle or join elements with the same material into one mesh in Blender. It will boost FPS and perfomance significantly.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-06-07 at 5:28 pm #74625
visualizer
Customer
KDV
I agree instead of loads of geometries we can simplify still. However actually, we spent lot of time in optimizing & arranging the 3D CAD data while bringing it from few 100 MBs (I guess that was 600 to 800 mbs initially) to just 22 MBs including textures. HaHa

Especially when deadline is there then sometimes we have to just leave it at some point. Later once the job is over nobody has a time to look at it again lol.

But as you said. If I get some free time will surely try to optimize it further.
- This reply was modified 5 months, 1 week ago by visualizer.
2024-06-08 at 7:15 am #74636

kdv
Participant

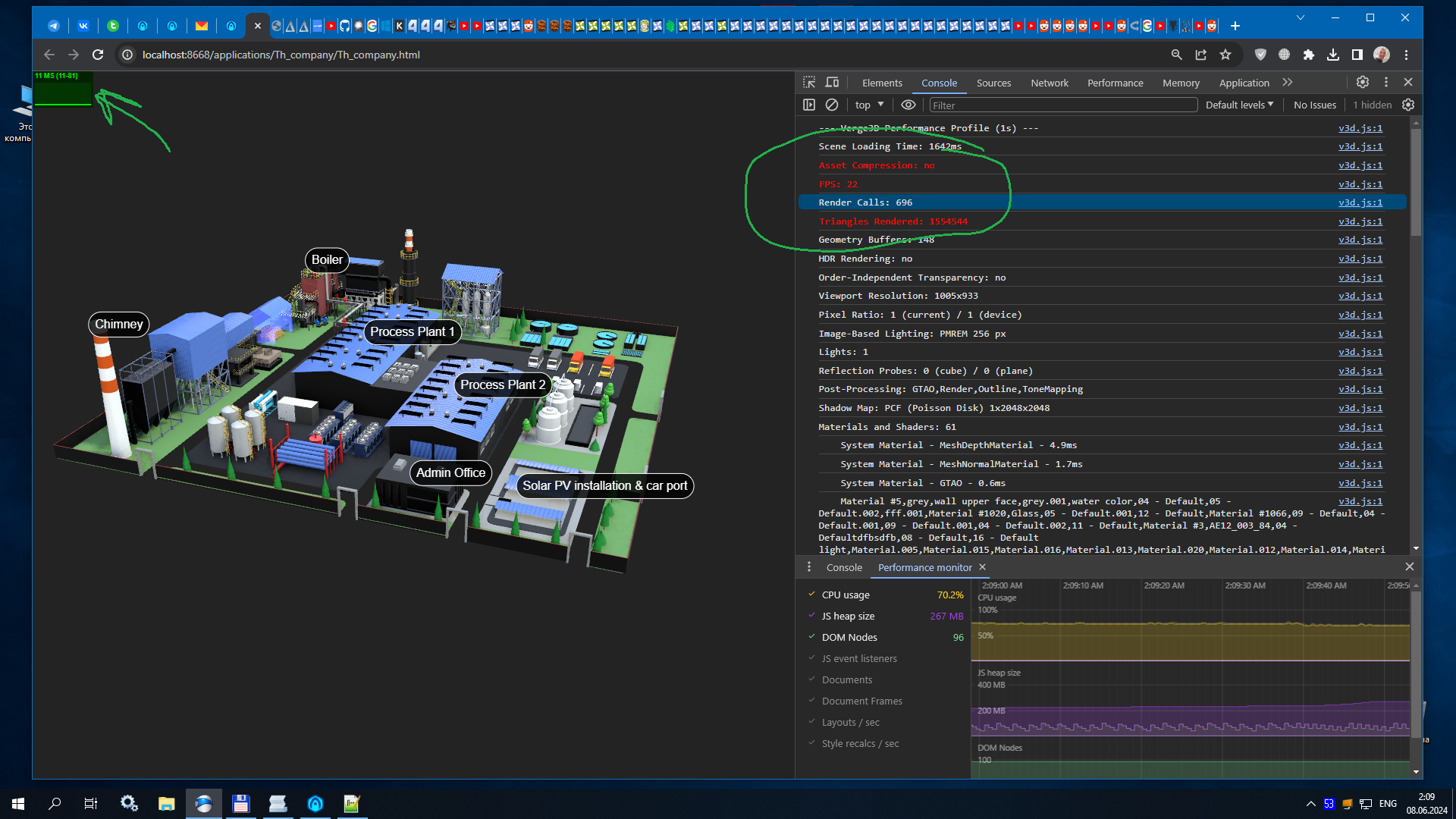

Reducing render calls from 1800 to 700 decreases the frame time from 24 ms (~42 fps) to 11 ms (~90 fps). And it’s just a rough and quick optimization.

Attachments:
You must be logged in to view attached files.
Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-06-11 at 11:27 am #74669

visualizer
Customer

Yes agreed !

Will surely look into it

2024-06-12 at 6:00 pm #74762

c4cc
Participant

kdv wrote:

But there are too many render calls (1800+). You’d better consider using “batch geometry” puzzle or join elements with the same material into one mesh in Blender. It will boost FPS and perfomance significantly.

besides batch geometry, any other way to reduce render call?

2024-06-12 at 6:14 pm #74764

kdv
Participant

c4cc wrote:

any other way to reduce render call?

One visible mesh = one render call. Reduce meshes’ count. No matter how you do it.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-06-13 at 12:50 pm #74833

c4cc
Participant

kdv wrote:

One visible mesh = one render call. Reduce meshes’ count. No matter how you do it.

What do you mean, meshes’ count?

Also, will amount of vertices in a mesh affect the render call of a mesh?

2024-06-13 at 12:52 pm #74835

kdv
Participant

c4cc wrote:

will amount of vertices in a mesh affect the render call of a mesh

Nope.

c4cc wrote:

What do you mean, meshes’ count?

Literally, the total count (amount) of meshes in the scene.

Puzzles and JS coding. Fast and expensive.

If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of the meaning at all.

2024-06-13 at 2:17 pm #74836

c4cc
Participant

kdv wrote:

Nope.

Great.

kdv wrote:

Literally, the total count (amount) of meshes in the scene.

I see, the total number of meshes in the scene eh? So if I hid the meshes, it reduces render call right?

2024-06-17 at 6:41 am #74900

visualizer
Customer

c4cc wrote:

I see, the total number of meshes in the scene eh? So if I hid the meshes, it reduces render call right?

No hiding mesh should not be the solution he means to connect them as much as possible in minimum count with as much as possible in low poly style.

I believe vertex count definitely matters a lot. When we initially imported the CAD mesh it was about 1 GB or even more. at several places we reduced by using opacity maps which drastically increased the loading speed. we stopped our work when whole thing reached under 25 mb. because the purpose was achieved.
Still loading is a slight concern I will look at it for further optimizing as discussed above

example – see the platform mesh in boiler at rear corner. instead of 3d object wires we used opacity map. huge saving on vertex count.
