Objects
The puzzles from this category perform various operations with objects.

Contents
- Puzzles Reference
- show
- hide
- is visible
- clone object
- create object
- remove object
- set transform
- get transform
- change local transform
- snap to object
- parent
- set object direction
- get object direction
- get objects from
- get morph factor
- set morph factor
- make object from
- add annotation
- remove annotation
- open annotation
- close annotation
- create text object
- update text object
- get object dimension
- distance
- get custom props
- outline
- set shadow param
- update light probe object(s)
Puzzles Reference
show
Makes a specified object, that was initially or previously hidden, visible. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle. If there is no such object(s) present in the scene, or an object is already visible, does nothing.

hide
Makes a specified object invisible. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle. If there is no such object(s) present in the scene, or an object is already invisible, does nothing.

is visible
Checks if an object (or any of objects in a list) is currently visible. If it so, returns the logical value true, otherwise returns false. If there is no such object(s) present in the scene, returns false.

clone object
Makes an object copy, generates a unique name for the new object and immediately adds it to the scene. Outputs the new object name. Does not work with lists, groups or the all objects puzzle.

This puzzles supports additional options which can be activated via the gear icon:

- also clone materials
- By default the "clone object" puzzle does not perform material cloning, hence the same material will be assigned to the cloned object. Enable also clone materials if you wish to clone the material (or materials) as well.
- preserve object groups
- By default the "clone object" puzzles resets object groups for the cloned object. Enable preserve object groups to transfer groups from the original object.
For usage example, check out the Clone Object demo (source files available in the Asset Store).
create object

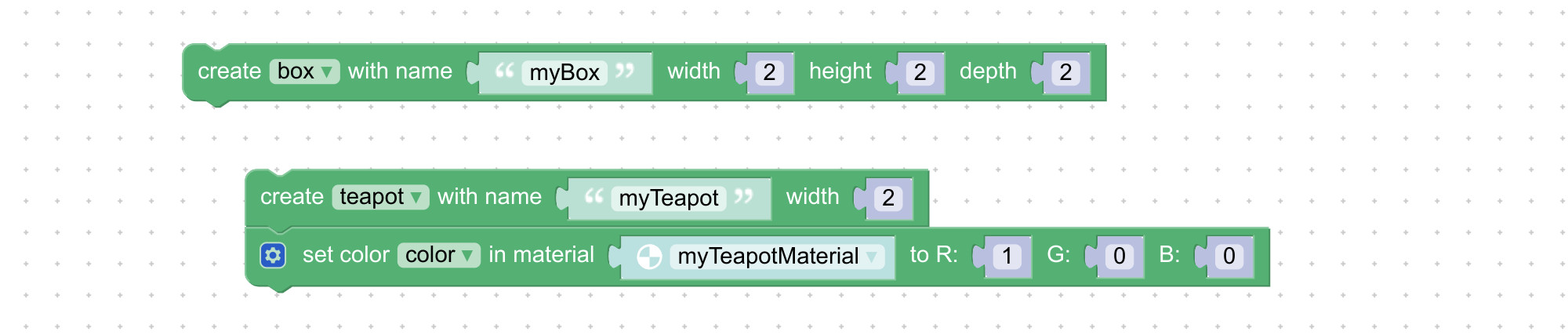

Creates and adds a new object to the scene. This puzzles creates objects without the need in a 3D editor, and as such is useful for learning visual programming as well as designing primitive visuals by users with no or minimal 3D modelling skills. By using this this puzzle in combination with make object from you can create really complex geometry.

For geometry objects, such as boxes or teapots, this puzzle also creates white-colored dielectric none-based PBR material (with roughness value set to 1
and metalness set to 0
). Use the set color and set value puzzles to tweak that material.
For plane with texture objects, this puzzle assigns a dummy checker texture to the model. Use the replace texture puzzle to change this texture.
remove object
Removes a specified object from the scene. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle. If there is no such object(s) present in the scene, does nothing.

set transform
Moves, rotates or scales an object according to specified transform data. The offset checkbox enables moving/rotating/scaling an object relatively to the original position/rotation/scale. Any of the axis inputs can be left blank. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

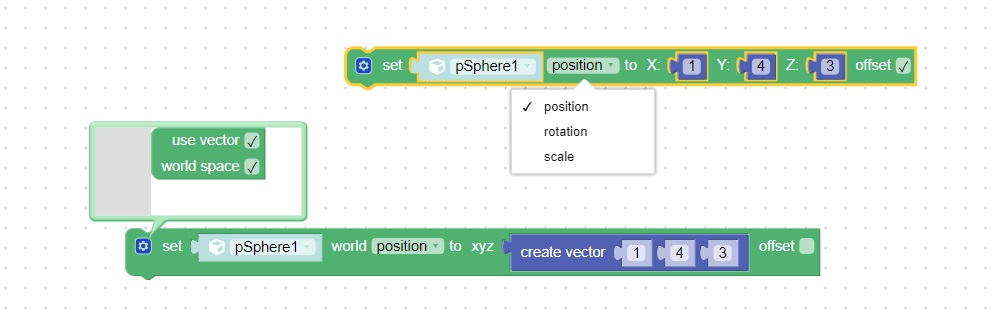

Sometimes you need to input a vector (which consists of the given X, Y, Z coordinates). In this case, you can modify the puzzle by clicking on the gear icon and setting on checkbox use vector. The world space checkbox enables transformations in world space (does euler rotation in XYZ order), otherwise does transformations in object's space.
get transform

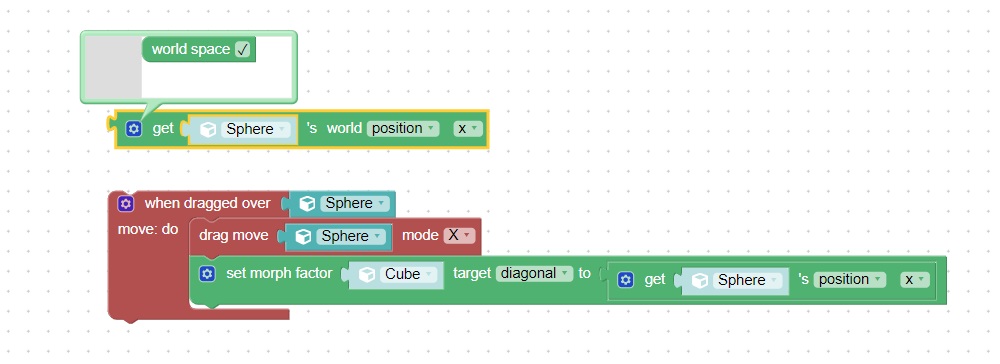

Retrieves the position, rotation or scale data of an object. To retrieve transformations in world space click on the gear icon and set on checkbox "world space" (retrieve euler rotation in XYZ order). Does not work with lists, groups or the all objects puzzle.

change local transform

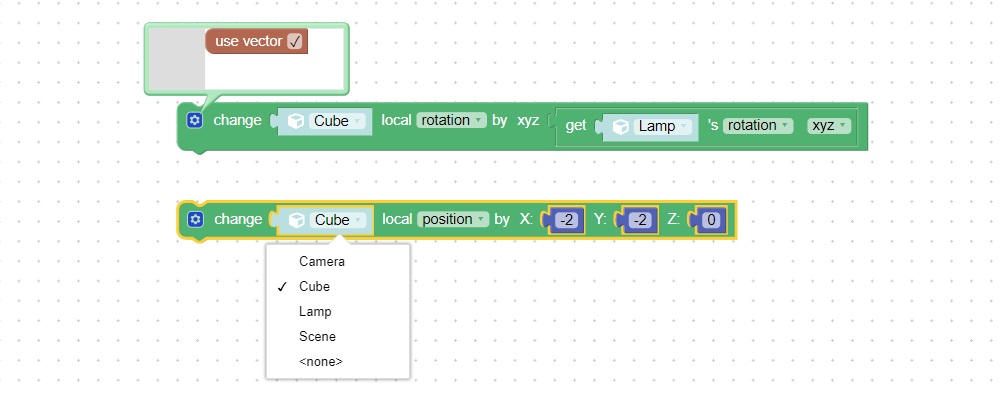

Moves, rotates or scales an object according to specified transform data in its local space. Any of the axis inputs can be left blank. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle. Sometimes you need to input a vector (which consists of the given X, Y, Z coordinates). In this case, you can modify the puzzle by clicking on the gear icon and setting on checkbox use vector.

snap to object
Moves an object to the position of another object by copying its transform data. Also copies rotation and scale. Does not work with lists, groups or the all objects puzzle.

parent

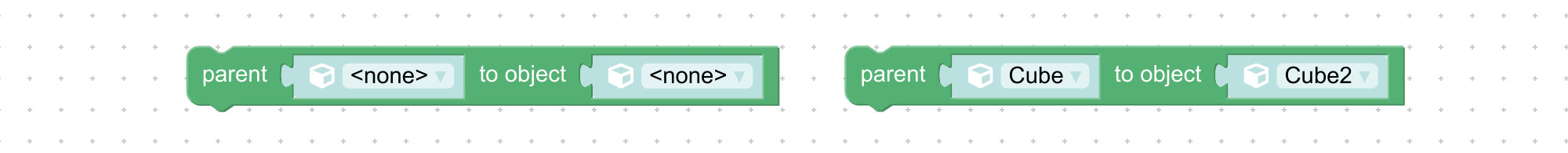

Creates a parent relation between objects, so that the first object follows position/rotation/scale of the second one. Does not work with lists, groups or the all objects puzzle.

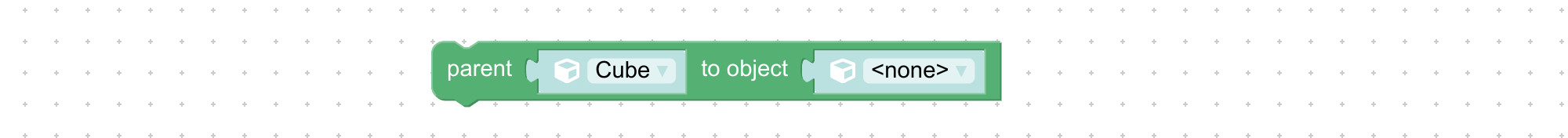

Specify <none> as the second value to unparent the object.

set object direction

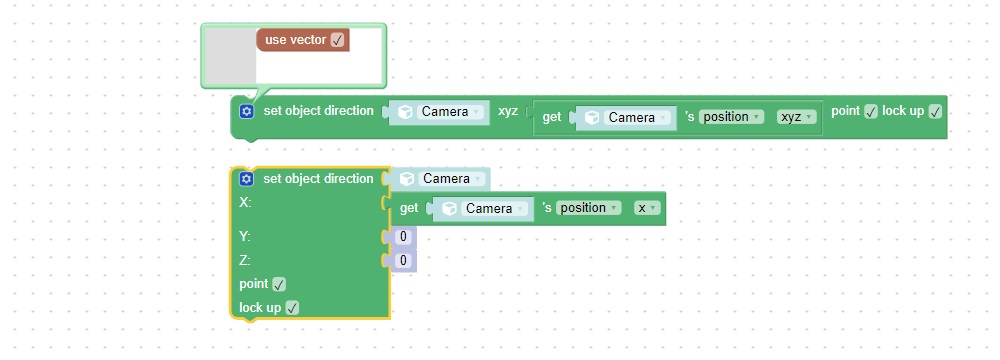

Set an object's direction to the point/vector with X, Y, Z coordinates. The point checkbox specifies whether the X, Y, Z coordinates belong to some point in 3D space or represent a direction vector. The lock up checkbox locks the up-down axis of the object so it remains perpendicular to the horizontal surface.

Sometimes you need to input a vector (which consists of the given X, Y, Z coordinates). In this case, you can modify the puzzle by clicking on the gear icon and setting on checkbox use vector.
get object direction

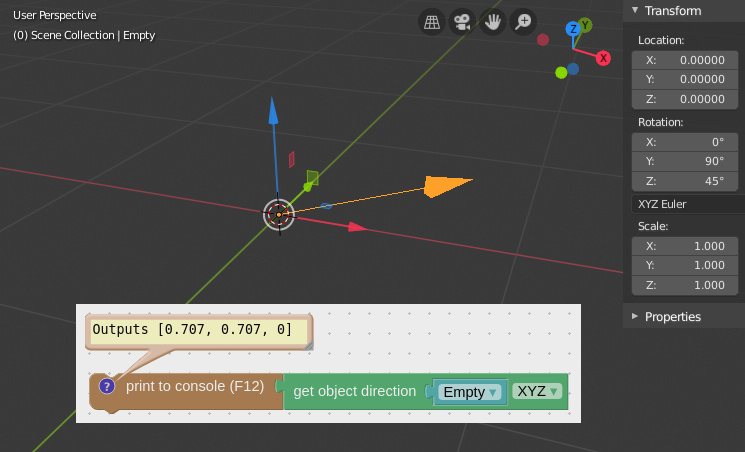

Returns an object's direction vector or numeric X, Y, Z vector components.

get objects from

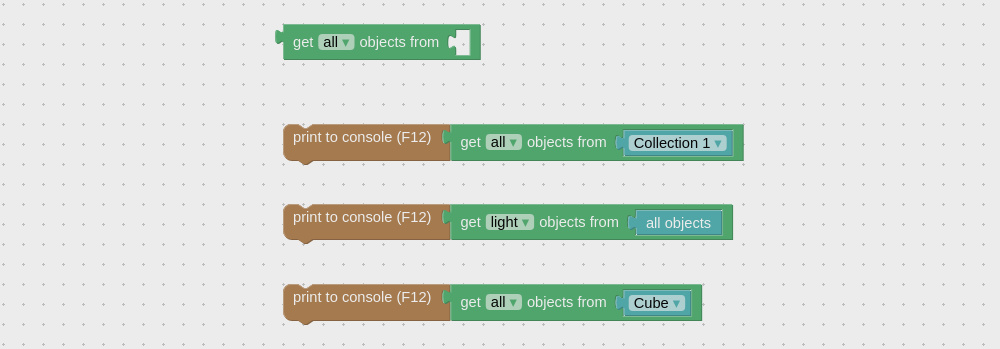

This universal puzzle allows you to:
- get the list of objects contained in a group thus making it iterable
- convert the output of the all objects puzzle to a list thus making it iterable
- get children of some parent object

By using the dropdown you can also filter off objects of a kind (e.g. cameras, lamps, annotations, etc).
get morph factor
Returns an object's morph target factor.
You can set a morph target by passing the name as a text. In this case, you need to modify the puzzle by clicking on the gear icon and setting on the checkbox flexible target input.

set morph factor
Sets an object's morph target factor.
You can set a morph target by passing the name as a text. In this case, you need to modify the puzzle by clicking on the gear icon and setting on the checkbox flexible target input.

Example:

See the source files of the Parametric Models demo and also this video tutorial explaining the basics of using morph target puzzles.
make object from
Create a new object by applying boolean (also called CSG or constructive solid geometry) operation on two input objects. The input objects are not affected and should be hidden/removed explicitly.

Example:

Limitations:
- Both objects should be parented to the same object or have no parent.
- Multi-material objects are not supported.
- Objects with normal mapped materials are not not supported.
add annotation
Adds a point of interest icon to an object that a user can expand by clicking on it to see some description. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

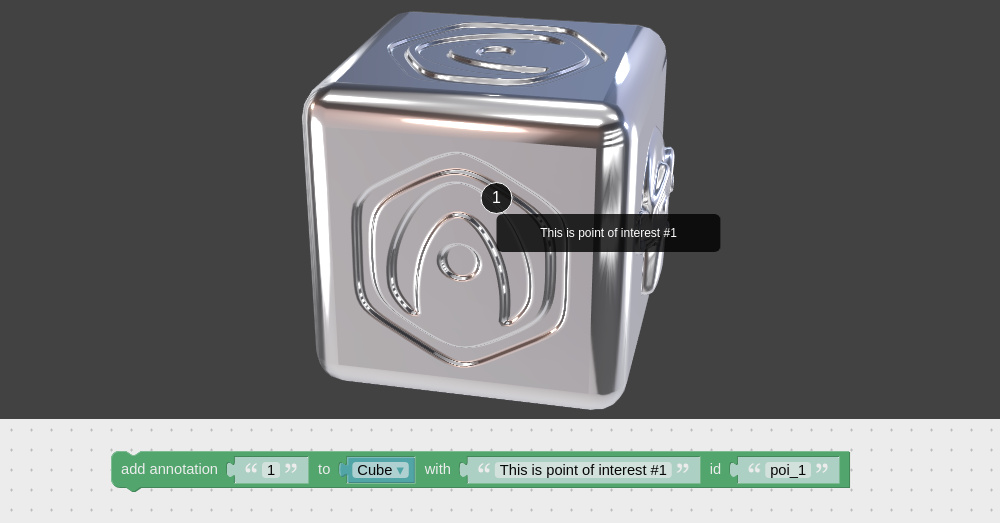

For example, to add an annotation to the "Cube" object with "1" as label and "This is point of interest #1" as description:

You can assign custom name for the annotation object, instead of default value, equal to the annotation label. For this you need to modify the puzzle by clicking on the gear icon and setting on the checkbox enable "name" option:

The add annotation puzzle creates 2 HTML elements (for label and description) which can be styled in App Manager settings or with CSS classes.

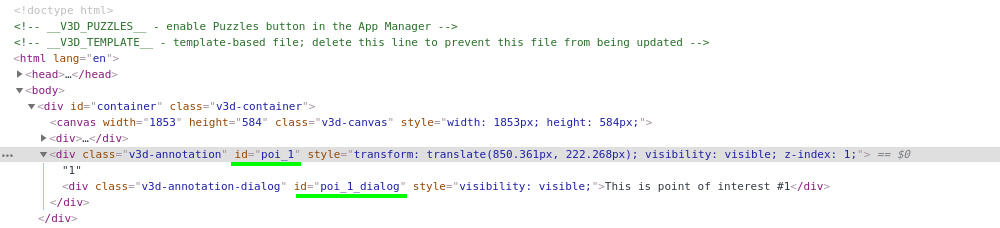

You can also style each individual annotation by assigning and accessing its elements' ids:

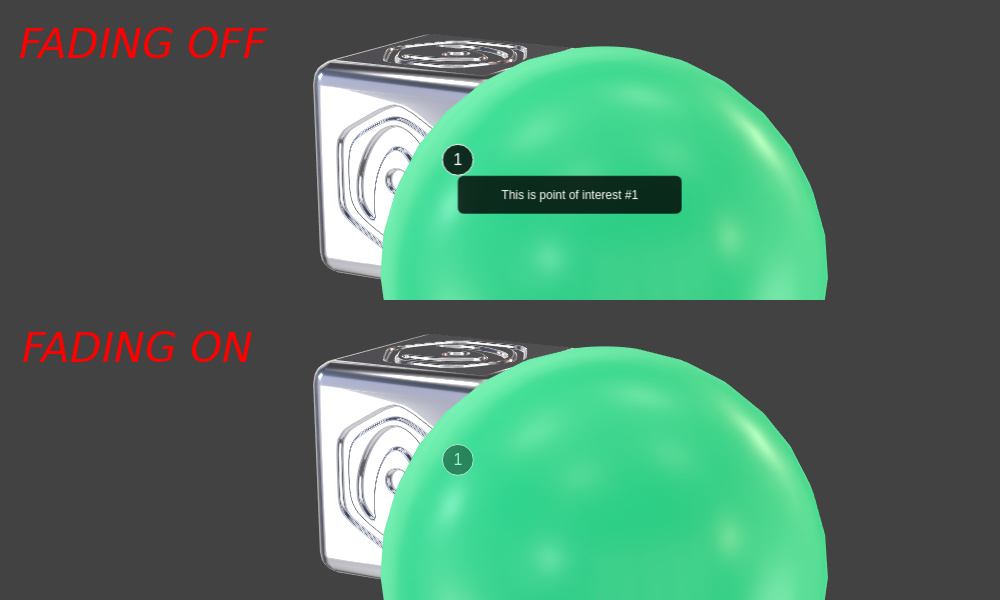

By default, an annotation obscured by some geometry is automatically closed and become semi-transparent. This behavior can be disabled by turning off the fade annotations option of the configure application puzzle.

You can use a more low-level alternative, the bind element puzzle, instead but it won't expand upon clicking and won't be obscured by geometry.
remove annotation
Removes a previously added annotation from an object. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

open annotation
Expands an annotation specified by its label.

close annotation
Closes an annotation specified by its label.

create text object

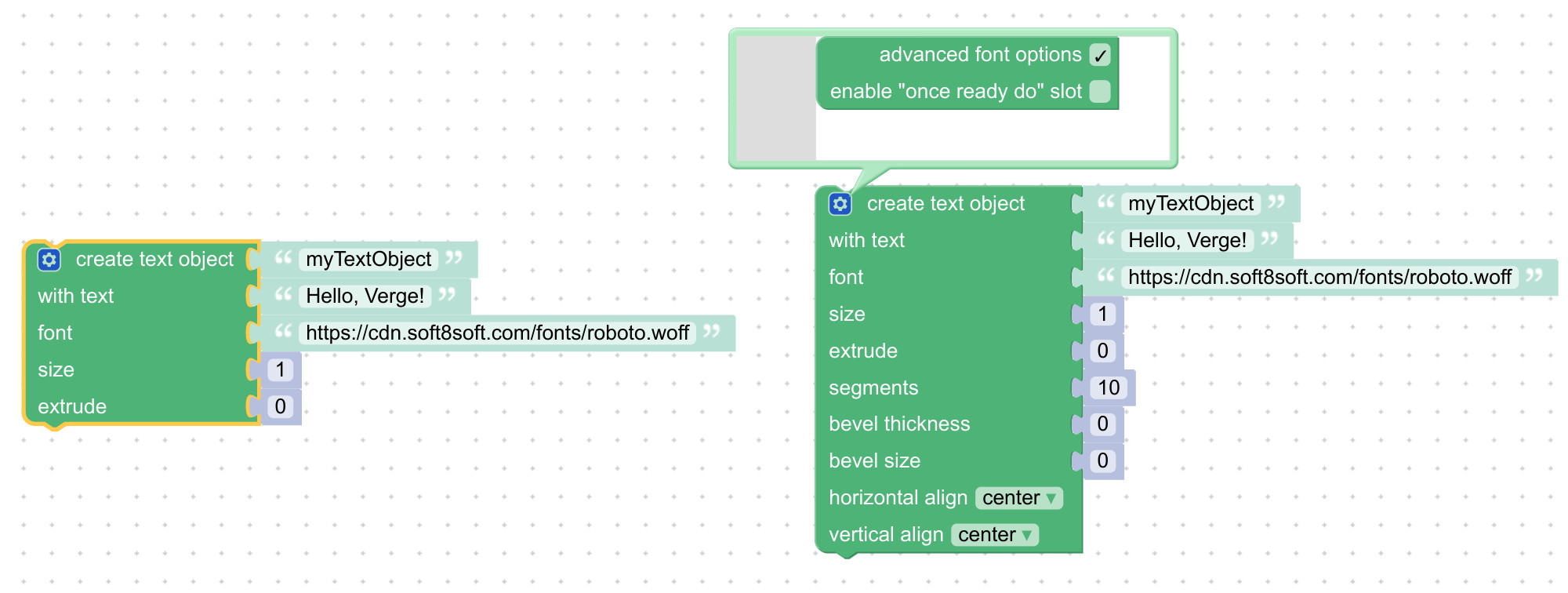

Generates a new text object according to the specified textual content and parameters.

Basic options:
- with text
- Generated text.
- font
- Font used to generate text. The following formats supported: WOFF, TTF, OTF.
- size
- Rendered text size in engine units (depending on the modelling suite: meters, inches, etc.).
- extrude
- Amount of extrusion applied to text glyphs.
Advanced options:
- segments
- Number of segments used to render the text. Less — better performance, more — better quality.
- bevel thickness
- Thickness of the text bevel.
- bevel size
- Size of the text bevel.
- horizontal align
- Horizontal text alignment.
- vertical align
- Vertical text alignment.
update text object
Updates mesh for a text object according to specified textual content. The text object should be created either by using the create text object puzzle or exported from the modeling suite.

This puzzle also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.
get object dimension

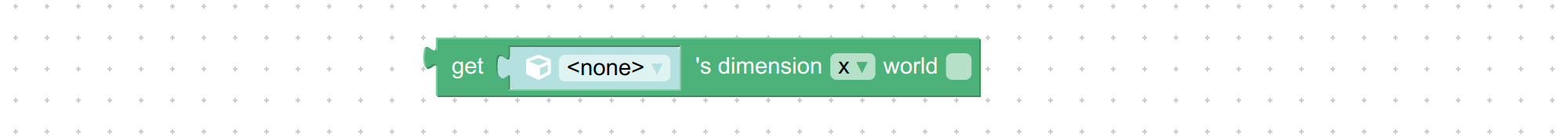

Outputs object dimensions as numberic X, Y, Z components or as XYZ vector in either local coordinate system (with scaling applied) or world coordinate system.

In the world mode, the puzzle also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

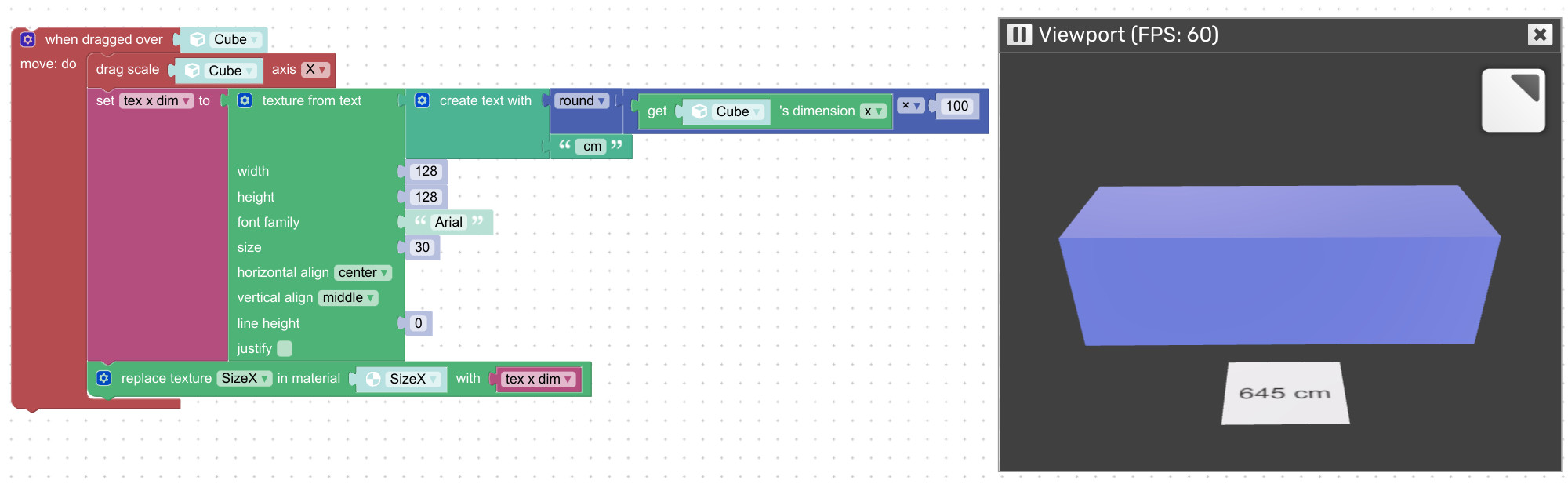

Usage example: drawing a text label which displays current width (in centimeters) for the dynamically scaled object.

The puzzle has some limitations. For morphed objects, it returns maximum dimensions the object can be morphed to. For skinned objects, the puzzle returns the original dimensions for the object.
distance

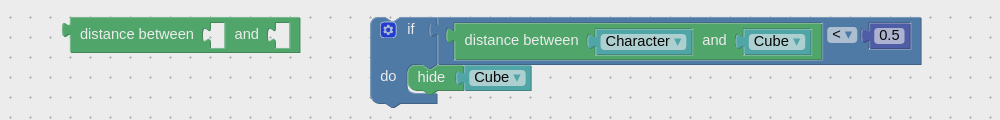

Outputs the distance between two specified objects. Does not work with lists, groups or the all objects puzzle.

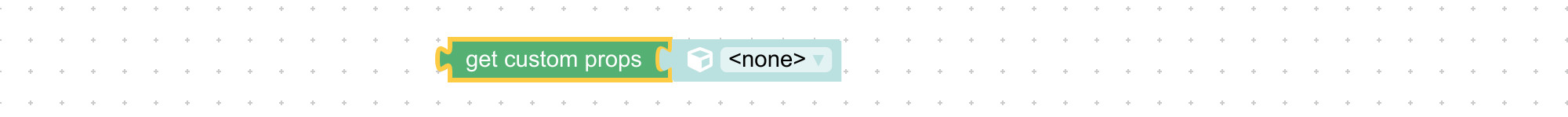

get custom props

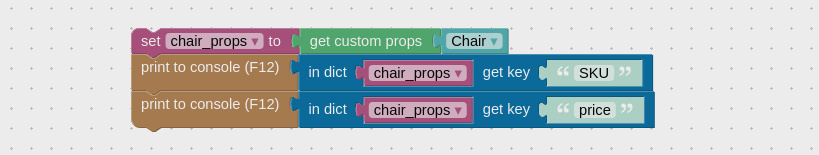

Returns a dictionary with custom properties assigned to an object.

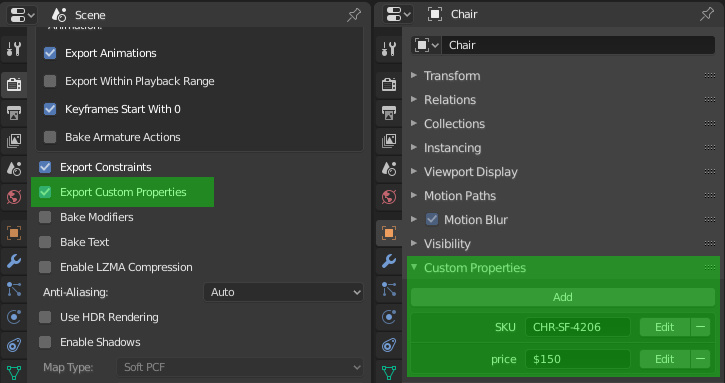

Custom properties can be assigned in Blender by using the Custom Properties panel:

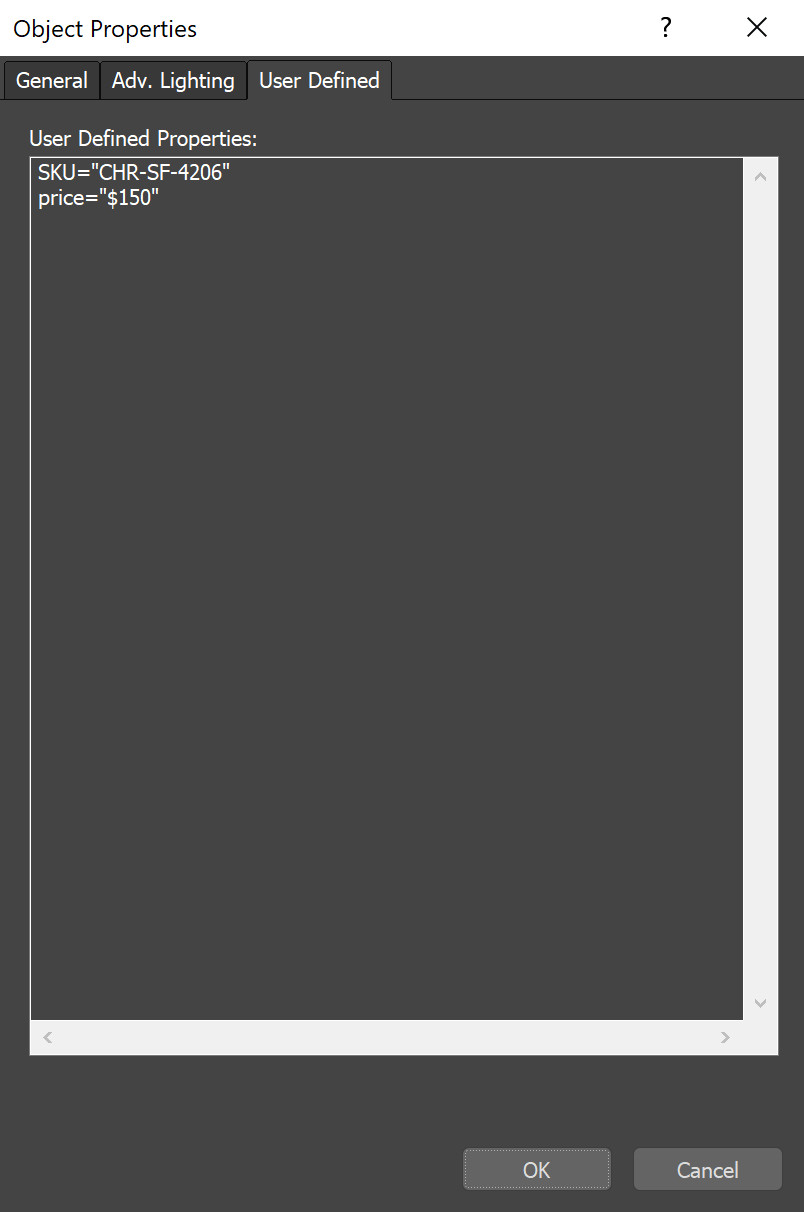

or in 3ds Max by typing properties in the Object Properties dialog:

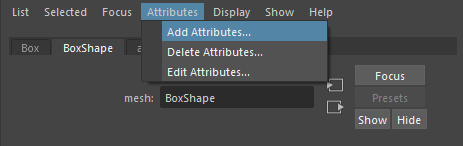

or in Maya by using the Attributes → Add Attributes... menu in the attribute editor:

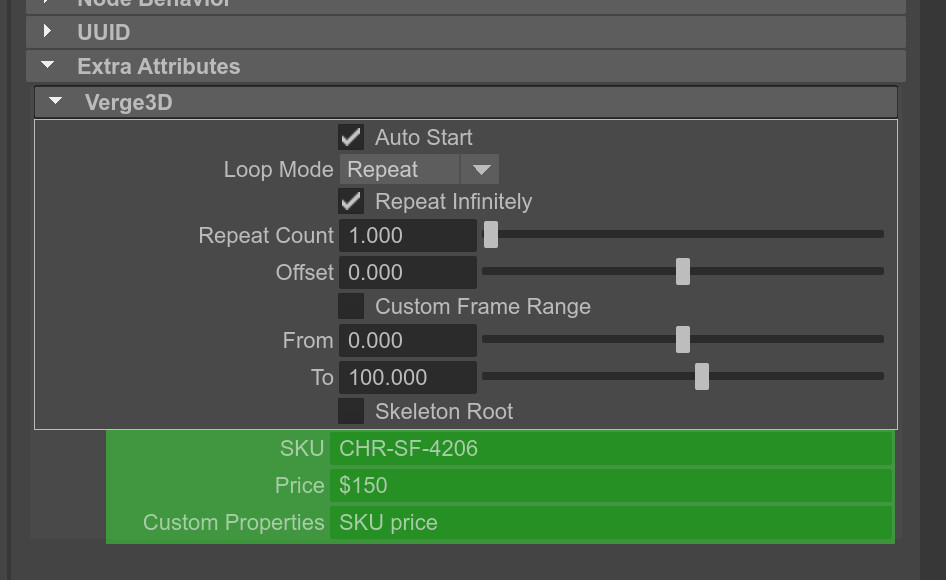

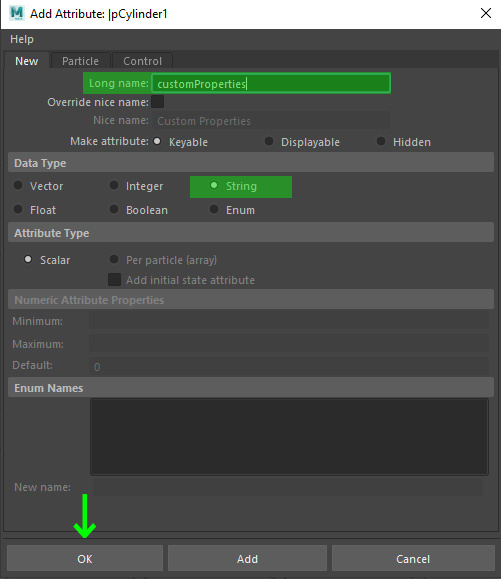

In case of Maya you need to assign additional customProperties attribute with the list of space-separated custom property names.

outline
Applies or removes the outline effect to/from a specified object. Requires enabling the outline effect in Blender, 3ds Max or Maya. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

set shadow param

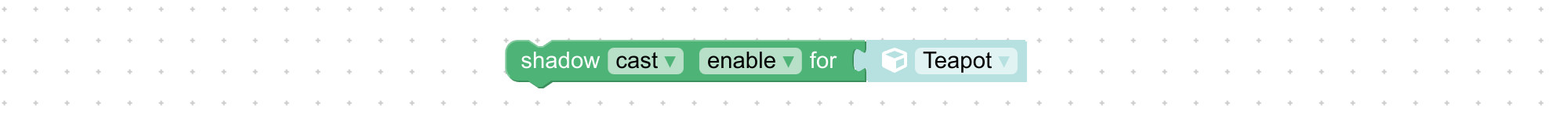

Enable/disable casting/receieving shadows for the given object. Also works for a list of objects, a group (or a list of groups) or with the all objects puzzle.

update light probe object(s)

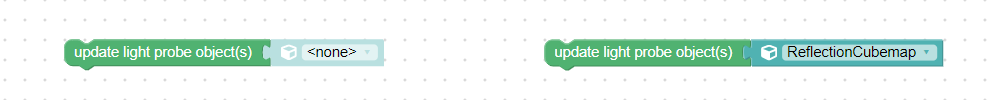

Updates/rerenders the reflection cubemap for the given light probe object.
